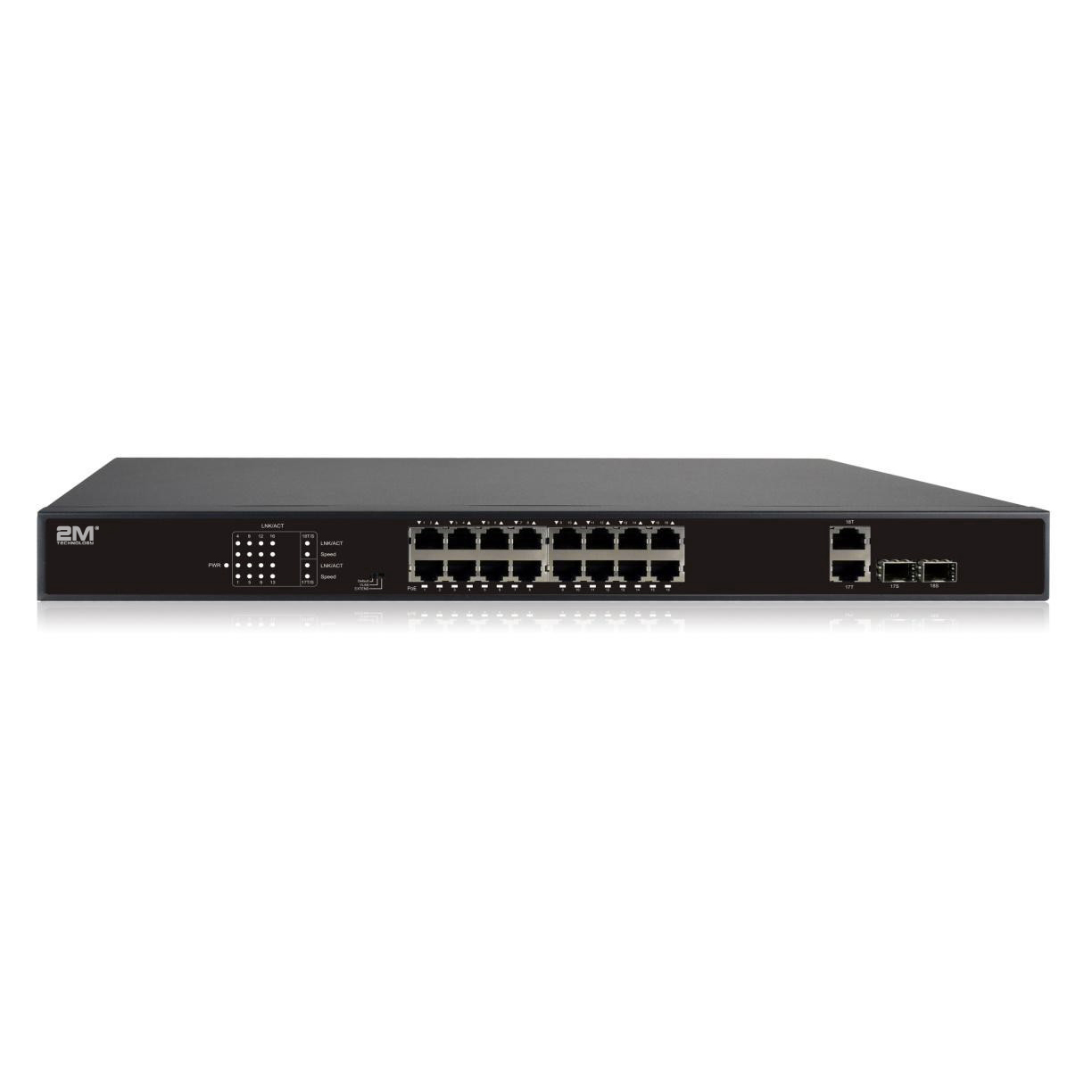

2M-POE-16+ 16 Port PoE Switch
- Secure mode, all down-link ports can communicate only with up-link ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
Product Documents
Downloads
- Multiple working modes to address your business needs:Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all down-link ports can communicate only with up-link ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Number of Channels |
---|
SPECIFICATIONS | |
Ports | 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
Switching Capacity | 7.2Gbps |
Forwarding Perfor- mance | 5.36Mpps |
Packet Buffer | 4MB |
MAC | 16K |
Dimensions (W x D x H) | 440mm x 207mm x 45mm(17.3″×8.1″×1.8″) |
Weight | <4.2kg |
Power supply | AC: 100-240V, 50/60Hz |
PoE | 802.3at/af |
Max. PoE Power | Max capacity: 250W
Max capacity for single port: 30W |
Cooling Fans | 2 |
Mean Time Between Failure (Mtbf) | >50000 hours |
Operating Temperature | 0°C-40°C (32°F-104°F) |
Operating Humidity | 10%~90% (noncondensing) |
Storage Humidity | 5%~90% (noncondensing) |
Indicator |
PWR:
Steady on: AC input is normal Off: No AC input |
PoE:
Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal |
|
LINK/ACT:
Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data |
|
Speed:
Off: Linked at 10/100Mbps On: Linked at 1000Mbps |
|
Working Mode |
Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
