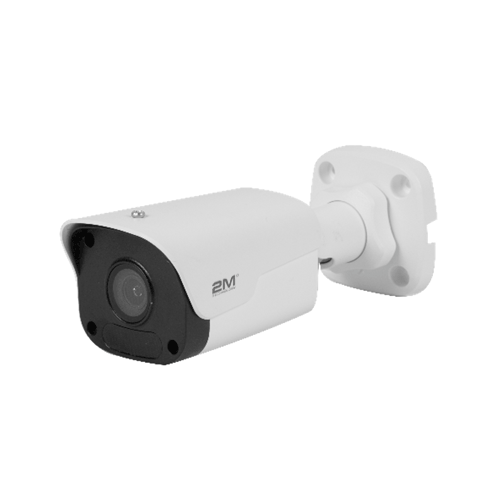

2MBIP-2MIR30-P 2MP Mini Fixed Bullet Network Camera

The 2MP Mini Fixed Bullet Network Camera comes with many advanced features packaged in a smaller sized device. For example, the camera offers an IR anti-reflection window to increase the infrared transmittance. This reduces any possibility of a sun glare when shooting during the daytime. In addition, the product includes Smart IR illumination and 2D/3D DNR (Digital Noise Reduction) to optimize the users experience when using the camera. Lastly, the Mini camera is fixed with an advanced PTZ varifocal lens capability of 2.8 -4.0mm.

Key Features

Optics

Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra 265, H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67

SKU: 2MBIP-2MIR30A-P Categories: CCTV Technology, Network Bullet Cameras, Network IP Cameras, Professional Series, Surveillance Tag: Professional Series

Weight	0.99 lbs
Series	Professional Series
Resolution	2 Megapixel (1920 x 1080)
Signal Type	IP (Network)
Night Vision Distance	30 Meters (100 feet)
Night Vision Type	Infra Red (IR) LED
Lens	Fixed 2.8mm Lens
Features	Audio Input
Alarm I/O	1-Jan
Behavior Detection	Cross Line, Intrusion, Motion Detection
Ingress Protection	IP67
Country of Origin	China

Camera
Sensor	1/2.7″, progressive scan,2.0 megapixel, CMOS
Lens	4.0mm@ F1.8				6.0mm@ F1.8
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)		Identify(m)
	4mm	60		24		12		6
	6mm	90		36		18		9
Angle of View(H)	86.5°				55.4°
Angle of View (V)	44.1°				30.2°
Angle of View (O)	106.4°				68.1°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°				Rotate: 0°~360°
Shutter	Auto/Manual, 1/6~1/100000 s
Minimum Illumination	Color: 0.005 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
Cross Line	Cross a pre-defined virtual line
Motion Detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S), API
Interface
Alarm I/O	1/ 1
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 6.4 W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection	IP67
Reset Button	Supported
