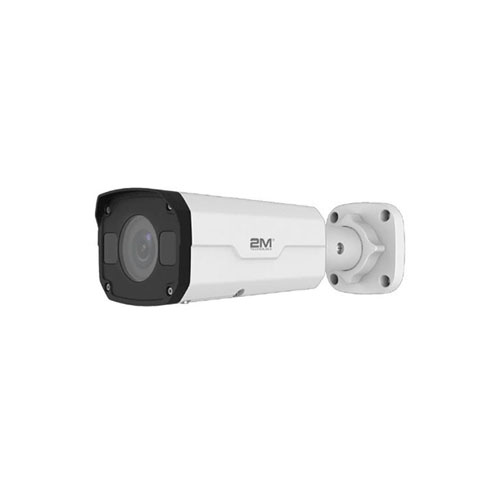

2M Technology 2MBIP-2MIR30V-E 2MP VF Network IR Bullet Camera

Sensor: 1/2.8″ progressive scan 2MP CMOS
Shutter: Auto/Manual, 1/6~1/100000 s
IP Rating: IP67

Product Documents

This 2MP Starview Network IR Bullet Camera is an optical security camera. The product is comes with Starlight illumination that helps capture images in indoor and outdoor environments. In addition, the ONVIF Conformance allows the device to record H.264/H.265 video compression. Lastly, the product has a 60fps Frame Rate and a durability weatherproof rating of IP67.

Key Features

Optics

Starlight illumination
60fps Frame Rate
Day/night functionality
SmartIR,up to 50 m (164 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
120dB TRUE WDR
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67

SKU: 2MBIP-2MIR30V-E Categories: CCTV Technology, Essential Products, NDAA Compliant, NDAA Compliant Network Cameras, Network Bullet Cameras, Network IP Cameras, Surveillance Tags: 2M Technology, 2MBIP-2MIR30V-E, 2MP, bullet camera, IR, Network, VF

Weight	2.2 lbs
Resolution	2 Megapixel (1920 x 1080)
Signal Type	IP (Network)
Lens	Fixed 2.8mm Lens
Series	Essential Series
Night Vision Distance	30 Meters (100 feet)
Night Vision Type	Infra Red (IR) LED
Ingress Protection	IP67
Country of Origin	China

Camera
Sensor	1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens	2.8~12 mm, manual zoom lens				2.8~12 mm, motorized zoom lens
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)		Identify(m)
	2.8mm	42		16.8		8.4		4.2
	12mm	180		72		36		18
Angle of View (H)	112.7°~28.1°
Angle of View (V)	60.1°~15.4°
Angle of View (O)	146.5°~33.2°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°				Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.01 Lux (F1.6, AGC ON) 0 Lux with IR on
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:1080P (1920×1080): Max. 30 fps; Sub Stream:720P (1280×720): Max. 30 fps; Third Stream: D1(704×576): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas

ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Interface
Network	1 RJ45 100M Base-TX Ethernet
Edge Storage	MicroSD, up to 128GB
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 6.5W
Dimensions (L × W × H)	253.4×86×71.7mm(9.98”×3.4”×2.8”)
Weight	1kg(2.2lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
