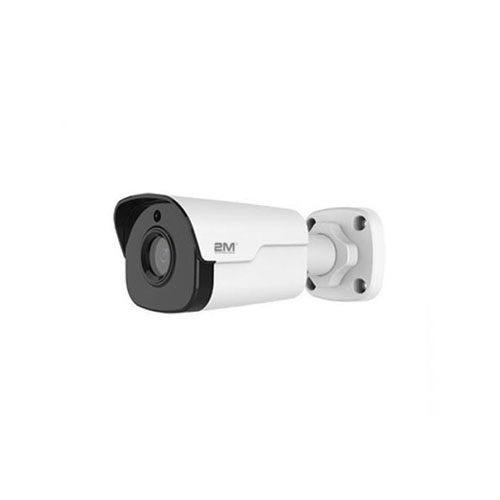

2MBIP-4MIR30-P 4MP WDR Network IR Mini Bullet Camera

Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
3D DNR (Digital Noise Reduction)

Product Documents

This 4MP WDR Network IR Mini Fixed Bullet Camera is a professional surveillance camera. The product is equipped with Smart IR illumination in up to 98 feet IR distance. This allows the device to use the day/night feature to fully capture high quality images. In addition to the 2D/3D DNR (Digital Noise Reduction), the Mini Fixed Bullet camera has an Optical glass window feature for higher light transmittance. Lastly, the product is also smaller in size weighing only about 0.99 lbs.

Key Features

Optics

Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP66

SKU: 2MBIP-4MIR30-P Categories: CCTV Technology, Cloud IP, Network Bullet Cameras, Network IP Cameras, Professional Series, Surveillance Tag: Always in Stock

Weight	0.99 lbs
Series	Professional Series
Resolution	4 Megapixel (2592 x 1520)
Signal Type	IP (Network)
Night Vision Distance	30 Meters (100 feet)
Night Vision Type	Infra Red (IR) LED
Lens	Fixed 2.8mm Lens
Features	Audio Input
Ingress Protection	IP67
Edge Storage	Micro SD
Audio Compression	N/A
Behavior Detection	Cross Line, Intrusion, Motion Detection
Country of Origin	China

Camera
Sensor	1/2.5″, 8.0 megapixel, progressive scan, CMOS
Lens	[email protected]				[email protected]
DORI Distance	Lens (mm)	Detect(m)		Observe(m)		Recognize(m)		Identify(m)
	4.0	72		28.8		14.4		7.2
	6.0	108		43.2		21.6		10.8
Angle of View(H)	91.6°				54.2°
Angle of view(V)	47.2°				32.5°
Angle of view(O)	112.7°				66.7°
Adjustment Range	Pan: 0°~360°		Tilt: 0° ~ 90°				Rotation: 0° ~ 360°
Shutter	Auto/Manual, 1~1/100000s
Minimum Illumination	Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:8MP (38402160), Max 20fps; Sub Stream:1080P (19201080), Max 30fps; Third Stream:D1(720*576), Max30fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line

motion detection	Moving within a pre-defined virtual region
Recognition	Face detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL,QoS
Compatible Integration	ONVIF(Profile S, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power	Power consumption: Max 8W
Dimensions (L × W × H)	191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
Weight	0.5kg (1.1lb)
Working Environment	-30( ~ 60( (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67

INTERFACE
Power	12 V DC, or PoE (IEEE802.3 af)
Power Consumption	Max 6.4 W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
