2MBIP-4MIR30UAST-P 4MP VF IP Bullet IR Camera
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
Product Documents

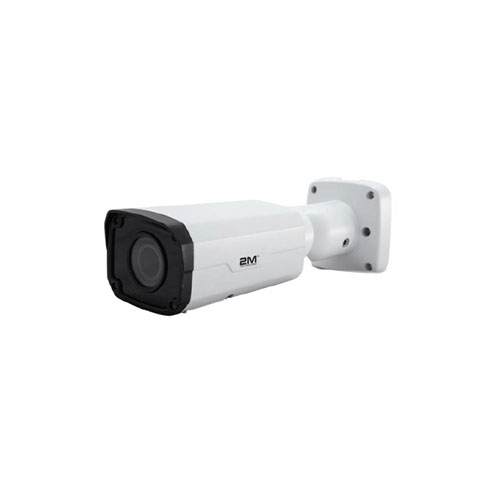

The 2M Technology 2MBIP-4MIR30UAST-P 4MP VF IP Bullet IR Camera is a smart, professional surveillance camera. The device comes with 4 megapixels of resolution recording and “Smart IR” illumination. These features gives the camera the ability to capture images in poorly lit areas up to 30 meters IR distance. In addition, the 3D DNR helps to remove unwanted noise interference from the camera signal. Lastly, the camera includes customized OSD AND supports PoE power supply.
Optics
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
Compression
- H.265
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP66
| Weight | 1.28 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Varifocal 2.8-12mm Lens |
| Features | Ultra WDR 120DB, Starvis, Audio Input |
| Ingress Protection | IP66 |
| Edge Storage | |
| Alarm I/O | |
| Audio Compression | |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| Sensor | 1/3″, 4 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000s |
| Lens | 2.8~12mm @F1.4; Angle of view: 95°~29° |
| Zoom/Focus | Manual |
|
Min. Illumination |
Color: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55 dB |
| WDR | Optical WDR (up to 120 dB) |
| Video | |
| Max. Resolution | 2592 × 1520 |
| Video Compression | H.265, H.264, MJPEG |
|
Frame Rate |
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Compatible Integration | ONVIF, API |
| Interface | |
|
Audio I/O |
Audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 8W | |
| Material | Cast aluminum |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
