Gate Barriers, Parking Lot Barriers, Traffic & Parking Access Control

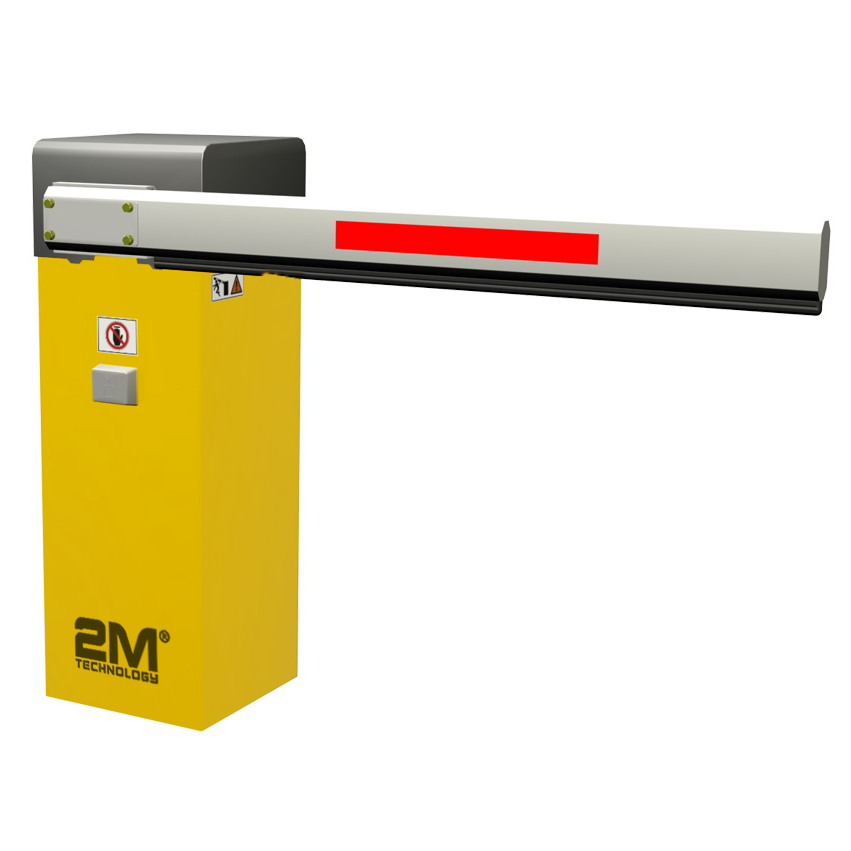

2MAGB-NSL-A Intelligent Barrier Gate (AC Torque Motor)
- Normal-speed of open / close: 2~4 sec. adjustable
- Straight boom arm with rubber bar
- Arm direction is interchangeable without changing parts
Product Documents
Downloads
| Dimensions | 55.1 × 11.8 × 39.4 in |
|---|---|
| Stainless Steel Types | |
| Ingress Protection | IP67 |
| IR Distance | 30m (98ft) |
| Country of Origin | China |
| GATE FEATURE | |
| Power Supply | AC 85~264V, 50~60HZ, 480W |
| Motor | 240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle |
| Remote (Optional) | Distanceï¹¥65ft |
| Spring | 1~2 pcs. spring balance |
| Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
| Loop Detector Input | pulse width 100ï¹¥ ms |
| IR detector Input | pulse width 100ï¹¥ ms |
| Up & Down Input | pulse width 100ï¹¥ ms |
| Traffic Light Output | AC220V output power (passive), current Max. 3A/AC220V |
| Loop detector Syn. output | Relay NO output, Current Max.0.5A/AC220V, or Max. 1A/DC12V |
| RS485 Interface | 9600bps, ASCII decimal encoded |
| Arm | 1.77"×3.93" Aluminum alloy octagonal arm with rubber bar, Max.19.6ft Round arm with foam, Max. 11.4ft |
| Housing | 1.8mm cold-roller sheet, IP54 |
| Housing Size (HxWxD) | 950 x 320 x 329 (mm) / 37.4" x 12.5" x 12.9" (in) |
| Package Size | 1100 x 480 x 430 (mm) / 43.3" x 18.8" x 16.9" (in) |
| Gross Weigth | around 46 KG / 101lb |
| Operating temperature | -30°C to 55°C / -22°F to 131°F |
| Humidity | 10%-95% |
