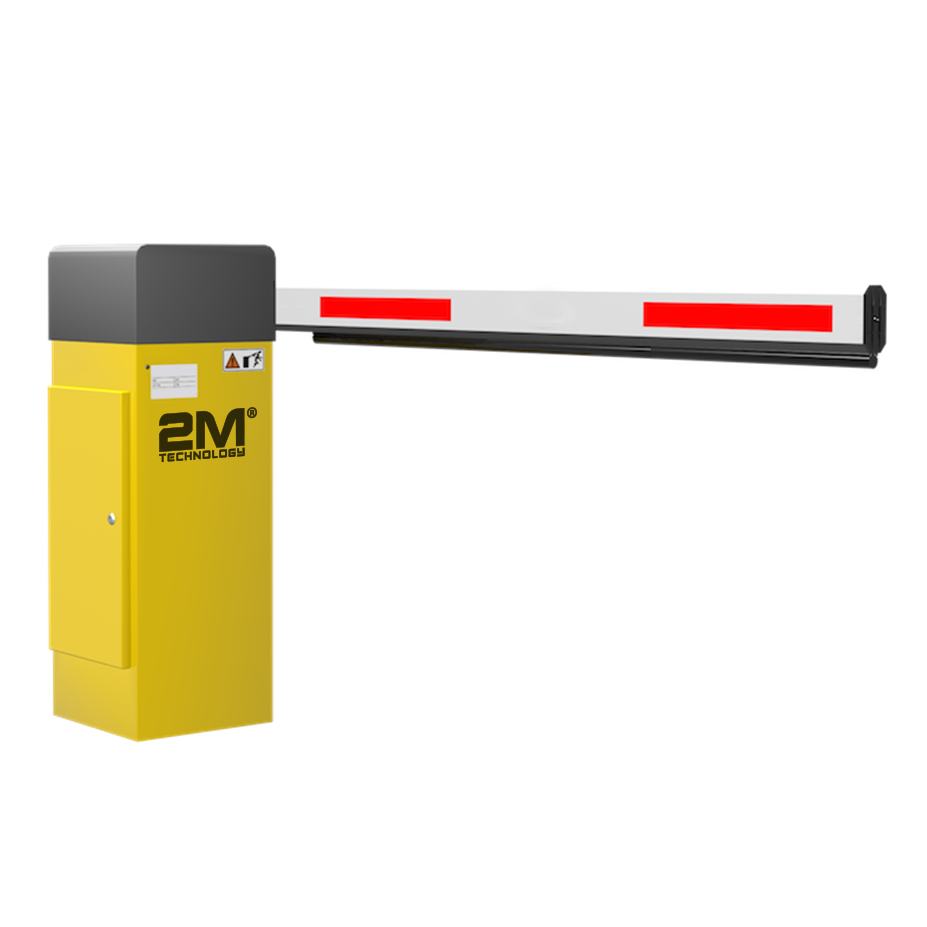

Name: 2MAGB-NSN-A Intelligent Barrier Gate (AC Torque Motor)
SKU: 2MAGB-NSN-A
Price: 6100.00 USD
Availability: InStock

2MAGB-NSN-A Intelligent Barrier Gate (AC Torque Motor)

REQUEST QUOTE (for best price)

• Normal-speed of open / close: 2~4 sec. adjustable
• Straight arm with rubber bar
• Inclusive of arm ×1 and push button ×1 which opens/closes barrier
• Exchangeable arm direction without changing any parts

Product Documents

Normal-speed of open / close: 2~4 sec. adjustable
Straight arm with rubber bar, Max. length following:
- 2 sec. / Max.4m arm
- 3 sec. / Max. 4m arm with swing-off
- 3 sec. / Max. 5m arm w/o swing off
- 4 sec. / Max. 6m arm w/o swing-off
Inclusive of arm ×1 and push button ×1 which opens/closes barrier
Exclusive of LED light bar, remoter, boom
Bracket and swing-off sold separately
Housing color optional: yellow(default)/orange/white/red/blue
Interchangeable arm direction without the need to change any parts

Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)

SKU: 2MAGB-NSN-A Categories: Gate Barriers, Parking Lot Barriers, Traffic & Parking Access Control Tags: 2MAGB-NSN-A, AC Torque Motor, Barrier, Gate, Intelligent, motor, Parking Lot Barriers, Special Order, torque

Dimensions	55.1 × 11.8 × 39.4 in
Stainless Steel Types	304
Ingress Protection	IP67
IR Distance	30m (98ft)
Country of Origin	China

GATE FEATURE
Power Supply	AC 85~264V, 50~60HZ, 480W
Motor	240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)	Distance﹥65ft
Spring	1~3 pcs. spring balance
Controller	80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Input	pulse width 100﹥ ms
IR detector Input	pulse width 100﹥ ms
Up & Down Input	pulse width 100﹥ ms
Traffic Light Output	AC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. output	Relay NO output, Current Max. 0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface	9600bps, ASCII decimal encoded
Arm	1.77"×3.93" Aluminum alloy octagonal arm with rubber bar, Max. 19.6ft Round arm with foam, Max. 11.4ft
Housing	1.8mm cold-roller sheet, IP54
Housing Size (HxWxD)	950×320×329 (mm) / 37.4" x 12.5" x 12.9" (in)
Package Size	1100×480×430 (mm) / 43.3" x 18.8" x 16.9" (in)
Gross Weigth	around 46 KG / 101lb
Operating temperature	-30C° to 55C° / -22F° to 131F°
Humidity	10%-95%
