Note: This is a special order item. Please allow 4-6 weeks for delivery.Â

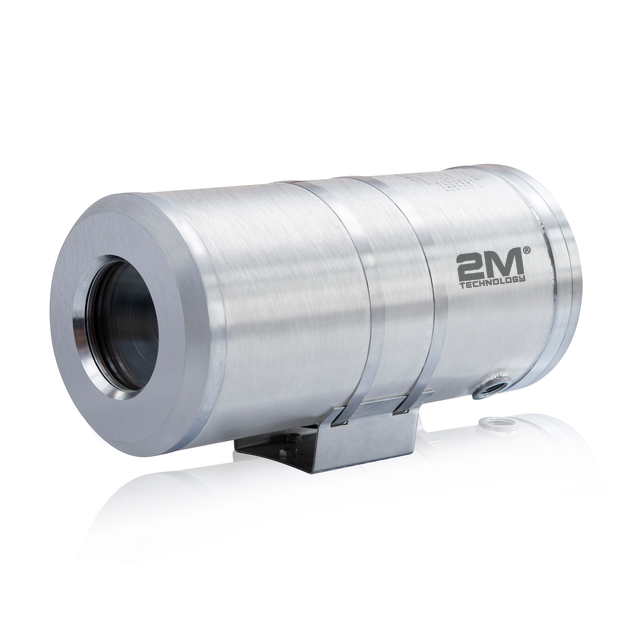

2MEAC16 Air Cooling Explosion Proof Camera Housing – 316L Stainless Steel
• Constructed of stainless steel 316L
• IP68 ingress protection
• Air cooling system
• 2x G3/4 or NPT3/4 cable entries
• Can be wall or pole mounted
Note: This is a special order item. Please allow 4-6 weeks for delivery.
| Dimensions | 14.7 × 6.4 × 7.3 in |
|---|---|
| Stainless Steel Types | |
| Ingress Protection | IP67 |
| IR Distance | 30m (98ft) |
| Country of Origin | China |
| CERTIFICATES | |||||
| Certificate Mark | ExdIIC T5 GB/DIP A20 TA, T5 | ||||
| MECHANICAL | |||||
| Housing | Stainless steel 316L (also available in 304) | ||||
| IP | IP68 | ||||
| Cable Thread Hole | 2pcs G3/4 or NPT3/4 | ||||
| ELECTRICAL | |||||
| Voltage | AC85V~AC265V or DC24V or AC24V | ||||
| Power | 15W | ||||
| AMBIENT | |||||
| Ambient Temperature | Water cooling: 0°C – to +250°C [32 °F – 250°F] | ||||
| Air Pressure | 80Kpa to 106Kpa | ||||
| Relative Humidity | ≤95% (no condensation) | ||||
| GENERAL | |||||
| Size | 374 x 163 x 185 (mm) 14.8" x 6.4" x 7.3" (in) | ||||
| Housing Inner Size | 260 x 80 x 80 (mm) 10.2" x 3.1" x 3.1" (in) | ||||
| Weight | 9.1kg (20.1 lbs) | ||||
| Mounted | wall, pole | ||||
| Wall Bracket | 2MEWB04 (304); 2MEWB16 (316L) | ||||
| CAMERA SPECIFICATIONS | |||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8~12 mm, motorized zoom lens | ||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |
| 12mm | 270 | 108 | 54 | 27 | |
| Angle of View (H) | 91.0°~27° | ||||
| Angle of View (V) | 54.4°~13.7° | ||||
| Angle of View (O) | 118.3°~33.2° | ||||
| Adjustment Angle | Pan: 0°~360°; Tilt: 0°~90°; Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Color: 0.02 Lux (F1.6, AGC ON); 0 Lux with IR on | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| WDR | DWDR | ||||
