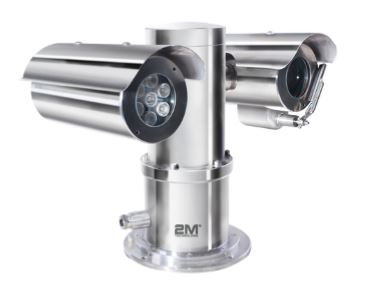

2MEPT16-4M37X Explosion-Proof 4MP Network PTZ Camera 37X Zoom with Built-In Heater & Wiper

Specifications:

• Dimensions: 502 x 292 x 443 mm (W x H x L)
• Weight: 24.5 kg
• Material: 304/316 Stainless steel
• Heater Control: Built-in (optional)
• Wiper: yes
• IP: IP68
• Voltage: AC100-240V or DC24Vor AC24V
• Power: 50W /70W (with thermostat)
• Optional surge protector: TVS 6000V
• Optional network signal: RJ45
• Optical audio: 1-way input, 1-way output
• Optical alarm: 2-way alarm input, 1-way alarm output
• Trail cable: 2 meters integrated cable

Ambient

• Ambient temperature: -25 to +60℃
• Air pressure: 80Kpa to 106Kpa
• Relative humidity: ≦95% (no condensation)

Infrared Light

• Light distance: 200 m
• Light control: auto mode

Pan & Tilt

• Horizontal: 360°
• Horizontal speed: 0.1-45°/s
• Vertical: -90 to +90°
• Cruise scan: support
• Keep watch: support
• Preset: 64/128/255/300
• Resume function: support
• Auto cruise: support
• Auto scan: support

Camera

• Image sensor: 1/2.8” Progressive Scan CMOS
• Electronic Shutter: 1/25s to 1/100,000s; Supports delayed shutter
• Min. illumination:
  • Color: 0.0005 Lux @(F1.5,AGC ON)
  • B/W: 0.0001Lux @(F1.5,AGC ON)
• Day & Night: IR cut filter
• Digital zoom: 16X
• Focal length: 6.5-240mm, 37X Optical Zoom
• Aperture range: F1.5-F4.8
• Horizontal field of angle: 70.0-2.51°
• Minimum working distance: 100mm-1500mm
• Zoom speed: Approximately 3.5s
• Video compression: H.265 / H.264 / MJPEG
• H.265 Type: Main Profile
• H.264 Type: BaseLine Profile / Main Profile / High Profile
• Video Bitrate: 32 Kbps~16Mbps
• Audio compression: G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
• Audio bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/ 32-192Kbps(MP2L2)/16-64Kbps(AAC)
• Main stream: 50Hz: 25fps (2688*1520，1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2688*1520，1920 × 1080, 1280 × 960, 1280 × 720)
• Third stream: 50Hz: 25fps (1920 ×1080); 60Hz: 30fps (1920 ×1080)
• Image setting: Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client
• BLC: support
• Exposure mode: AE / Aperture Priority / Shutter Priority / Manual Exposure
• Focus mode: Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
• Area exposure/focus: support
• Optical fog: support
• Image stabilization: support
• Day/Night switch: Automatic, manual, timing, alarm trigger
• 3D noise reduction: support
• Picture overlay switch: Support BMP 24-bit image overlay
• Region of interest: ROI supports three streams and four fixed areas
• Storage function: Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support)
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMT P, SNMP, IPv6
• Interface protocols: ONVIF
• Smart detection: Cross-border detection, area intrusion detection, leaving area detection, hovering detection, personnel gathering detection, fast motion detection
