Explosion Proof, Explosion Proof Accessories

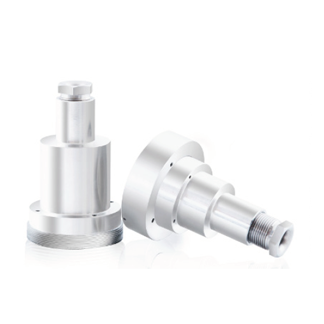

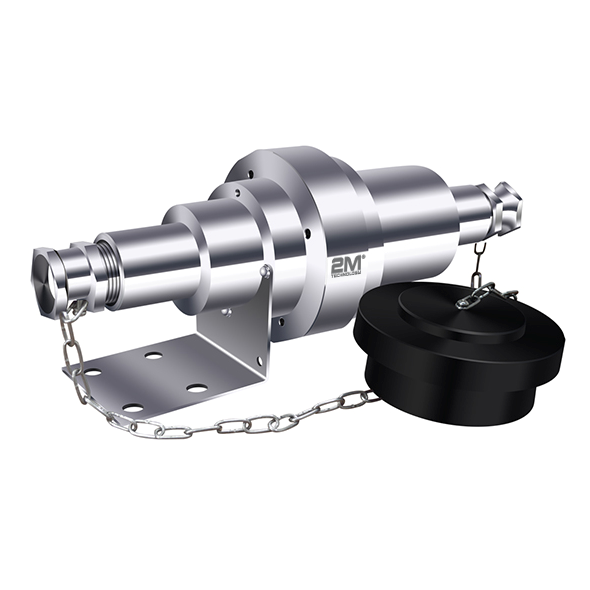

2MEQC-04-T Explosion Proof Quick Aviation Connector
- Network aviator connector
- 2pcs G3/4 connector
- IP65
- 7 core for AV signal, 12 core for network signal
Note: This is a special order camera. Allow 4-6 weeks for delivery.
Product Documents
Downloads
Explosion Proof Quick Aviation Connector
- 304 Stainless steel
- 4:3 proportion
- Fit for gas zone 1, zone 2
- Fit for dust zone 21, 22
- Input signal: AV (1VP-P) or VGA
- IP66
- 17″ inch display
Note: This is a special order camera. Allow 4-6 weeks for delivery.
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 9.7 × 3.4 × 3.9 in |
| Stainless Steel Types | |
| Country of Origin | China |
| CERTIFICATE | |
| Certificate Mark | Ex dIIC T6 Gb/ DIP A20 TA, T6 |
| MECHANICAL | |
| Housing | Stainless Steel 304 |
| IP | IP65 |
| Couple | Male part, female part |
| Cable Thread | 2x G3/4 |
| Working Temperature | -25°C to 65°C [-13°F to 149°F] |
| ELECTRICAL | |
| Voltage | AC100-240V, AC24V |
| Working current | ≤2A |
| Communication | 7-core (3-core power, 2-core video, 2-core RS485) |
| 12-core ( network type) | |
| GENERAL | |
| Size | 247*86*100mm |
| Weight | 2kg |
