Explosion Proof, Explosion Proof Accessories, Explosion Proof Brackets & Mounts, Surveillance

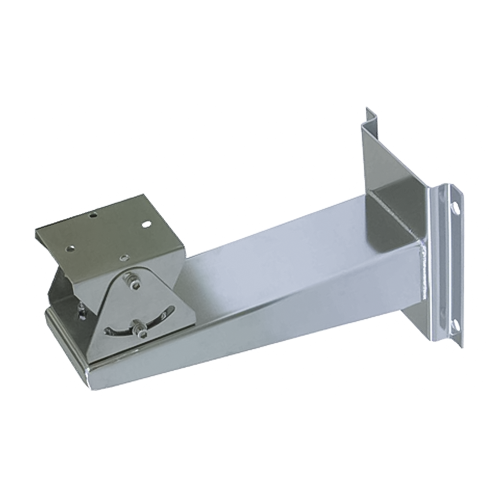

2MEXB-2915 Explosion Proof Housing Wall Bracket

Wall Bracket for Explosion Proof Housing
Maximun Load – 60 Kg (132.28 lb)
Available in 304 or 316L Stainless Steel

Product Documents

Downloads

2MEXB-2915 Spec Sheet

Description
Specification

The 2MEXB-2915 Explosion Proof Wall Housing Bracket has an IP68 rating and a NEMA-4X enclosure rating. This wall housing bracket can be used in a hazardous environment with an explosion proof camera system. The total dimensions are 295 mm × 150 mm × 130 mm (11.61 in × 5.91 in × 5.12 in).

Available models :

Model Material
2MEXB-2915	AISI 304 stainless steel
2MEXB-2915-L	AISI 316L stainless steel

SKU: 2MEXB-2915 Categories: Explosion Proof, Explosion Proof Accessories, Explosion Proof Brackets & Mounts, Surveillance Tags: 304, 304SS, 316L, class I, corrosion proof, div 1, div 2, Stainless Steel

Weight	3.97 lbs
Stainless Steel Types	304
Country of Origin	China

Specifications
Finish	–
Maximum Load	60 Kg ( 132.28 lb )
Weight	1.8 Kg ( 3.97 lb ) .
Material	.AISI 304 stainless steel 2MEXB-2915 AISI 316L stainless steel 2MEXB-2915-L
Dimension ( W x H x L )	( 295 x 150 x 130 mm ) ( 11.61 x 5.91 x 5.12 in )
Voltage ( Optional )	( AC110V to AC 240V, 50/60 Hz ) ( AC24V, 50/60 Hz )
Current ( Optional )	≤500mA
