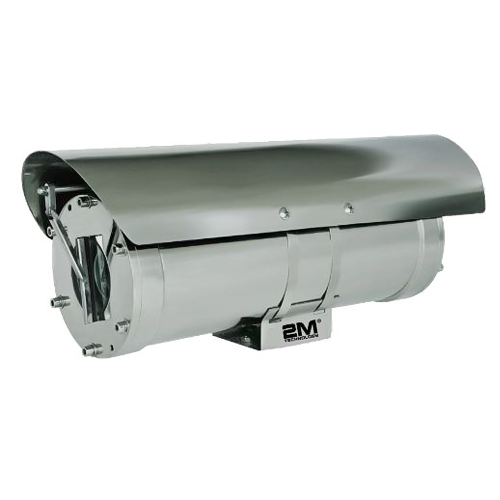

2M Technology 2MEXD-1312-L Explosion Proof Camera Housing 316L

REQUEST QUOTE (for best price)
  • IP66, NEMA-4X Enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Wiper and sunshield included
  • Brand New Product with 1 Year Warranty
  • Free Technical Support on Products bought from 2M Technology

Product Documents

Compare

The 2MEXD-1312-L Explosion Proof Camera Housing has a non-condesing humidity rating of 5% to 95%. Its external dimensions are 195 x 194 x 420 mm ( 7.68 x 7.64 x 16.54 In ) and its internal dimensions are 80 x 210 mm ( 3.15 x 8.27 In ). This housing can be used in a hazardous, explosive environment to prevent an explosion, rather than survive an external one by preventing the ignition of surrounding gases or dust.

Features:

  • IP66, NEMA-4X Enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Wiper and sun-shield included

Available models :



Model                             Material
2MEXD-1312 AISI 304 stainless steel
2MEXD-1312-L AISI 316L stainless steel

Weight 24.25 lbs
Stainless Steel Types

Country of Origin

China

Specifications
Type Back opening
Atmospheric Pressure 80 kPa 106 kPa
Operating Ambient Temp -25°C to 60°C (-13°F to 140°F)
Relative Humidity 5 % to 95 % nocondensing

.

Protection rating Ex d IIC T6 Gb Explosin-proof marking IP66, NEMA-4X enclosure rating
Input Power 85 V AC to 265 AC, 24 V AC
Dimensions ( W x H x L ) ( 195 x 194 x 420 mm ) ( 7.68 x 7.64 x 16.54 In )
Internal Usable Size ( Ø x L ) ( 80 x 210 mm ) ( 3.15 x 8.27 In )
Window Thickness 12 mm ( 0.47 in )
Window Viewing Area (Ø) 69.5 mm ( 2.74 in )
Weight 11 Kg ( 24.25 lb)

.12.8 Kg ( 28.22 in ) (wall mount bracket included)

.

Material AISI 304 stainless steel 2MEXH-3616WS

AISI 316L stainless steel 2MEXH-3616WS-L

Heater Control On at 15°C ± 3 °C (59°F ± 5°F)

Off at 25C° ± 3°C (77°F ± 5°F) (Optional
