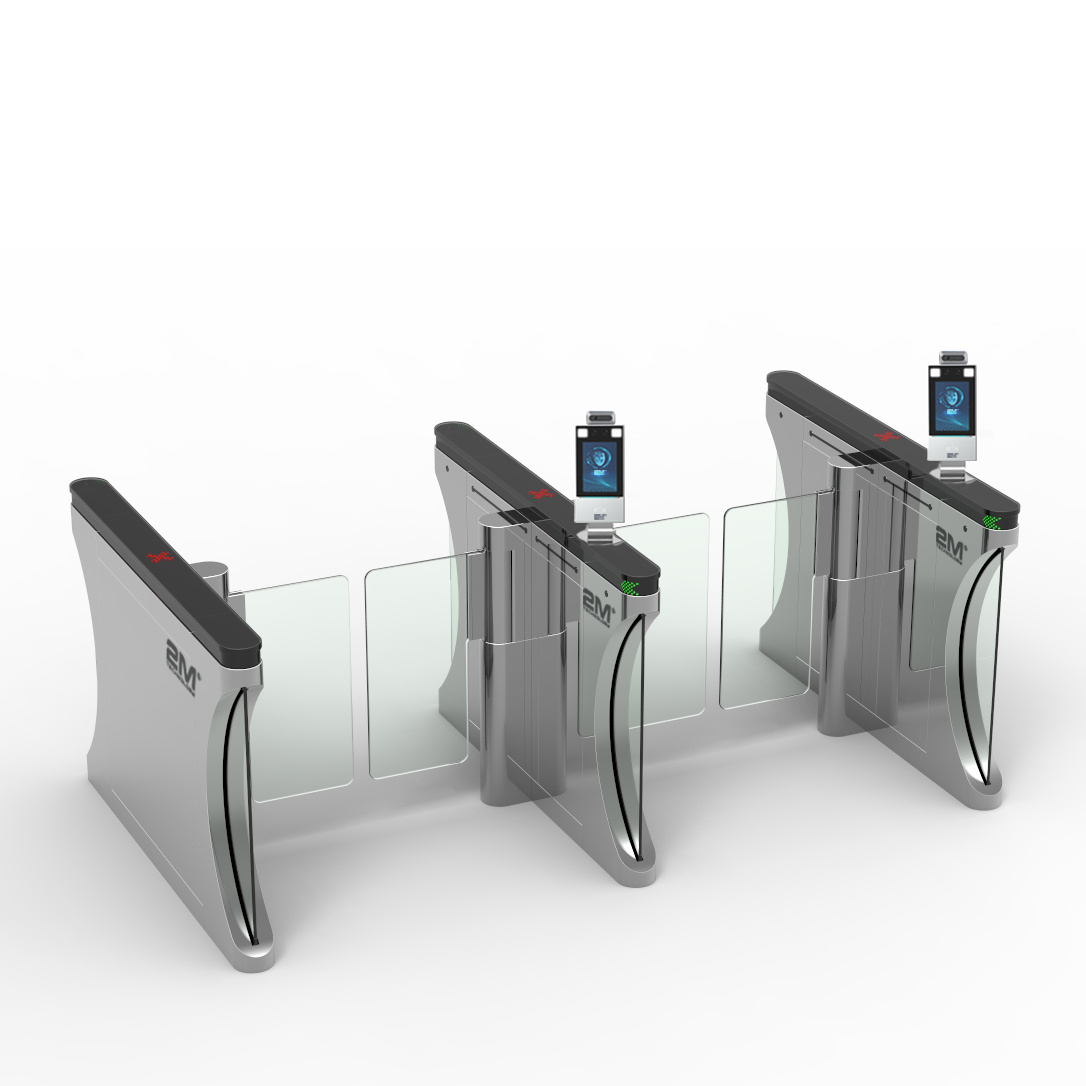

2MRST-1 Face Recognition and Thermal Detection Access Control Retractable Door Turnstile
Features:
- Vertical Swing turnstile,Stainless steel 304#Â
- Size 55.1″ x 10.2″Â x 39.4″Â (in); Gross weight: 70kg, single: 95kg
- Unlock time: 0.2s ;
- Pass rate: 35 person /min;
- Pass width:≤550mm;
- Input :100V~240V;
- Driving voltage: 24v;
- Environment: -25~+70;
- Power consumption:30w;
- Input: 12v dry contact;Â Â Â Â Â Â Â Â Â Â Â Â Â
- Automatic open when power off
- Support non-contact detection, support warning people with abnormal body temperature
- Support body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
- Built-in deep learning dedicated chip, supports local offline recognition, 10,000 face capacity, face whitelist (1:N)
- Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Support anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
NOTE: The model numbers and prices represent single units and ARE NOT as illustrated in the images. For more information on pricing contact our representatives.
Face Recognition and Temperature Detection Access Control Technology
Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.
Module Features:
- Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
- Non-contact temperature detection
- Body temperature detection and personnel information binding
- Configurable temperature detection threshold value
- Temperature range between 30ËšC to 45ËšC
- Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
- Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
- The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Anti-spoofing detection based on deep learning algorithm
Want to see this product in action? Schedule a live demo now!
[maxbutton id=”7″ ]
Options Available with this Model
MODEL NUMBER Â MOTOR TYPE | 2MGST-3 (SINGLE FLAP) | 2MGST-3D (DOUBLE SIDED FLAPS) Â BRUSH MOTORÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â BRUSHLESS MOTORÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â SERVO MOTOR | ||||
BRUSH MOTOR | BRUSHLESS MOTOR | SERVO MOTOR | ||||
Drive Type | Drive By Brush Motor | Drive By Brushless Motor | Drive By Servo Motor | Drive By Brush Motor | Drive By Brushless Motor | Drive By Servo Motor |
Arm Material | Acrylic | Acrylic / Tempered Glass | Acrylic / Tempered Glass | Acrylic | Acrylic / Tempered Glass | Acrylic / Tempered Glass |
Power Off | Automatic Open | Automatic Open | Automatic Open | Automatic Open | Automatic Open | Automatic Open |
Lane Width | 0-23.6″ (in) [0-600mm] | 0-35.4″ (in) [0-900mm] | 0-35.4″ (in) [0-900mm] or Longer | 0-35.4″ (in) [0-900mm] or Longer | 0-35.4″ (in) [0-900mm] or Longer | 0-35.4″ (in) [0-900mm] or Longer |
Speed | 1 Second Not Adjustable | 0.5 Seconds Adjustable | Max 0.2 Second And Can Adjustable | 1 Second Not Adjustable | 0.5 Seconds Adjustable | Max 0.2 Second And Can Adjustable |
Max Capacity Flow | 1000 | 2000 | More Than 2000 | 1000 | 2000 | More Than 2000 |
Life Time | 2-3 Years | 3-5 Years | At Least 5 Years | 2-3 Years | 3-5 Years | At Least 5 Years |
MTBF | 5 Million | 10 Million | 20 Million | 5 Million | 10 Million | 20 Million |
Controller | Standard Function Can Be Set | Standard Function Can Be Set | Full Function Can Be Set | Standard Function Can Be Set | Standard Function Can Be Set | Full Function Can Be Set |
Structure | Stable | Strong | Strong | Stable | Strong | Strong |
Mechanical Friction | Yes | Some | None | Yes | Some | None |
Noise | Moderate | Quiet | Almost None | Moderate | Quiet | Almost None |
