Features

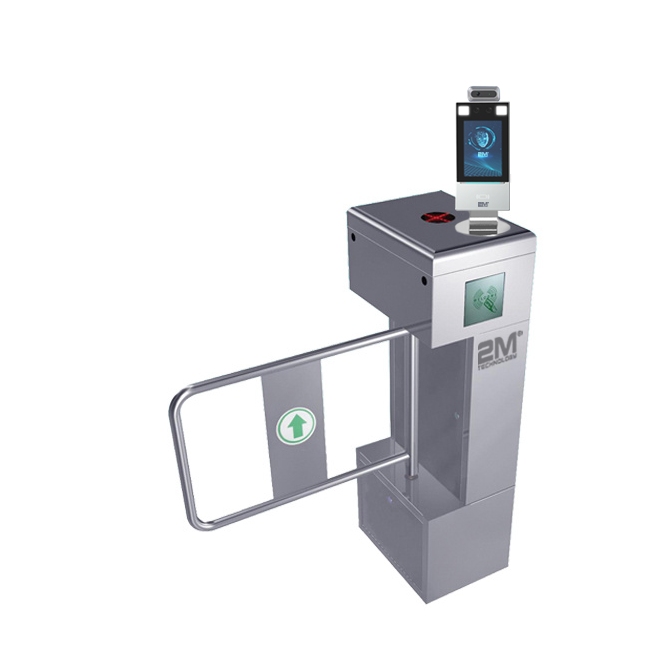

- Vertical Swing turnstile
- Material: Stainless steel 304#Â
- Size: 16.5″ x 13″ x 38.6″ (in)
- Gross weight: single: 35kg
- Unlock time: 0.2s
- Pass rate: 35 person /min
- Pass width: ≤550mm
- Power consumption: 30w;
- Automatic open when power off
Face Recognition and Temperature Detection Access Control Technology
Control access to buildings, offices, factories, plants, and other facilities by verifying persons identities with a 99% face recognition accuracy. Does not grant access to anyone with a high fever or without a mask. 2M’s terminal software can determine if the person passing by is wearing a mask or not. It can also read his/her temperature and determine, based on a configurable pre-defined temperature threshold, if access should be granted or not.
Module Features:
- Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
- Non-contact temperature detection, abnormal body temperature warning system
- Body temperature detection and personnel information binding, which can quickly confirm personnel information while scanning body temperature
- Configurable temperature detection threshold value
- Temperature range between 30ËšC to 45ËšC
- Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
- Learning algorithm maximizes accuracy rate >99% and reduces the false rate <1%
- Dedicated learning chip supports local offline recognition up to a 10,000 face capacity, face whitelist (1:N)
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Anti-spoofing detection based on deep learning algorithm, effective against fraud such as presenting a photo or video rather than a live person
Available Options:
| Model | 2MMST-2 (Single Flap) | |
|---|---|---|
| Motor Type | Brush | Brushless |
| Drive Type | Drive by brush motor | Drive by brushless motor |
| Power Off | Automatic open | Automatic open |
| Lane Width | 0-23.6" in/ 0-600 mm |
0-35.4" in/ 0-900 mm |
| Speed | 1s, not adjustable | 0.5s, adjustable |
| Max Capacity Flow | 1000 | 2000 |
| Life Time | 2-3 years | 3-5 years |
| MTBF | 5 million | 10 million |
| Controller | Standard function can be set | Standard function can be set |
| Structure | Stable | Strong |
| Mechanical Friction | Yes | Some |
| Noise | Moderate | Quiet |
