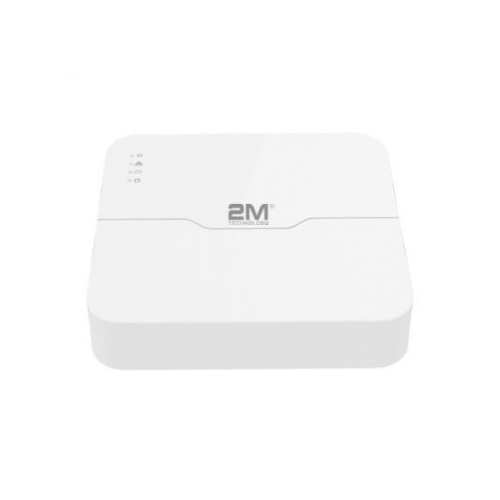

2MN-6008-P8-E 8-ch 1-SATA Ultra 265/H.265/H.264 NVR
2M Technology 8-ch 1-SATA NVR Key Features:
Support Ultra 265/H.265/H.264 video formats
8-channel input
Plug & Play with 8 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 2MP resolution recording
1 SATA HDD, up to 10 TB
Support cloud upgrade
Product Documents
The 2M Technology 2MN-6008-P8-E 4-ch 1-SATA Ultra 265/H.265/H.264 NVR is high quality NVR system. The device is equipped with HDMI and VGA Video Output. This allows the customer to incorporate a monitor for video display. The NVR device also supports IP cameras adaptive access.
Features:
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance
- Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 2MP resolution recording
- 1 SATA HDD, up to 10 TB
- Support cloud upgrade
| Weight | 1.54 lbs |
|---|---|
| Signal Type | |
| Number of Channels | |
| PoE Channels | |
| Internal Hard Drives SATA Ports | 1 SATA Hard Drives |
| Series | Essential Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Country of Origin | China |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 8-ch |
| Model | |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/ Playback | 1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 1080p@20, 4 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 10TB for each disk |
| External Interface | |
Network Interface                  1 RJ45 10M/100M self-adaptive Ethernet Interface
