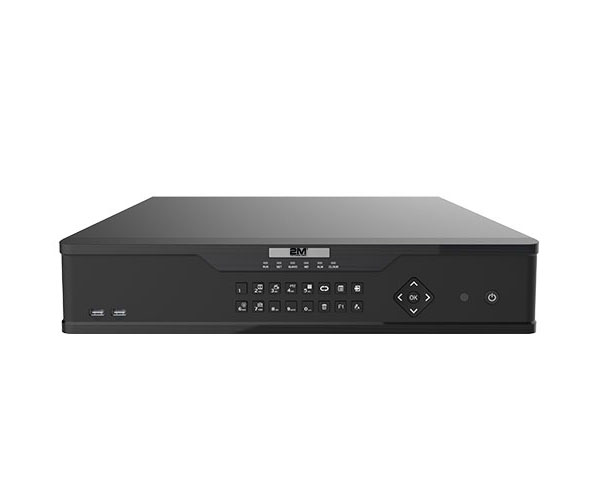

2MN-8464-G 64 Channel Network Video Recorder

Features:

Supports Ultra H.265/H.265/H.264 video formats
64-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
HDMI1, HDMI2, VGA independent outputs provided
Up to 12 Megapixels resolution recording
Support RAID 0, 1, 5, 6, 10
8 SATA HDDs, Up to 10TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Supports N+1 Hot spare
Supports for 12V Power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

SKU: 2MN-8464-G Categories: 64 Channel Network Video Recorders NVRs, Network Video Recorders, Surveillance Tags: 2MN-8464-G, 64, Channel, Network, Video

Dimensions	17.4 × 17.4 × 3.5 in
Number of Channels	64 Channels
Country of Origin	China

VIDEO/AUDIO INPUT
IP Video Input	64-ch
Two-way Audio Input	1-ch, RCA
NETWORK
Incoming Bandwidth	384Mbps
Outgoing Bandwidth	384Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE

HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
DECODING
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
HARD DISK
SATA	8 SATA interfaces
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
DISK ARRAY
Array Type	RAID 0, 1, 5, 6, 10
EXTERNAL INTERFACE
Network Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
Alarm In	16-ch
Alarm Out	4-ch
GENERAL
Power Supply	100~240 VAC Power Consumption: ≤ 25 W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	442 x 426 x 89 (mm)/17.4″ x 16.8″ x 3.5″ (in.)
Weight (without HDD)	≤ 5.7Kg (12.57lb)
