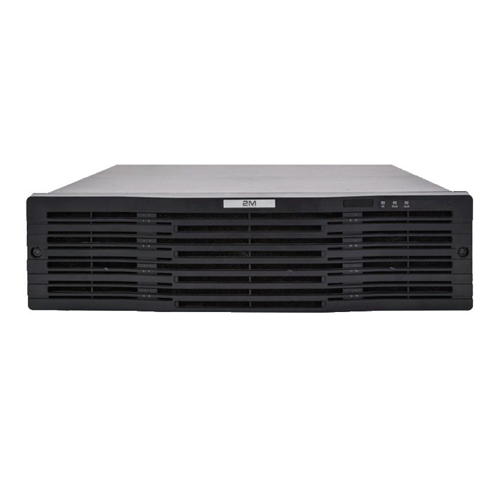

2MNAS-16HD-C High Performance Disk Enclosure for Video Surveillance
- High Density
- 3U height that holds up to 16 disks
- Power protection
- Redundant power supplies
Product Documents
Downloads
2MNAS-16HD-C, with high performance, high reliability, high density, high scalability, is an affordable high-level disk enclosure developed especially for video surveillance.
Features:
- High Density
- The innovative enclosure with 1mm depth and 3U height that holds up to 16 disks, is space-saving and can be used with standard rack-mounts.
- Power protection
- Disks are powered on sequentially during system startup to protect against impulse
- Multi-stage fan speed and energy saving
- Multistage speed fans are configured on the hot-swappable frame in redundancy
- System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
- Redundant power supplies
Weight | 22 lbs |
---|---|
Dimensions | 19 × 18.8 × 5.1 in |
Series | Corporate Series |
Standalone Recorder |
STORAGE | |
HDD | 16 SATA Interfaces |
Disk Capacity | up to 8TB for each disk |
EXTERNAL INTERFACE | |
Back-end Expansion Interface | 1 mini SAS |
GENERAL | |
Power Supply | 100 ~ 240V |
Consumption (with HDD) | ≤ 100W |
Working Environment | -10 °C~ 55 °C |
Humidity | 5%~95% RH (non-condensing) |
Weight (without HDD) | < 10kg (22lb) |
Dimensions (W×D×H) | 481.6 × 477.1× 130.5mm (19″ x 18.8″ x 5.1″ in.) |
