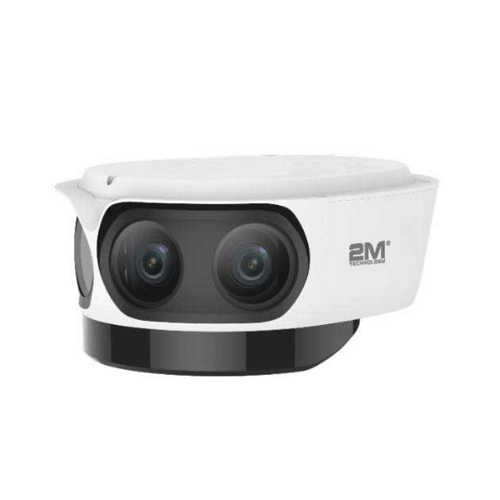

2MPANIP-4KIR50-P 4K Starlight Panoramic Network Camera
REQUEST QUOTE (for best price)
- IR up to 50m (164ft)
- Starlight Technology
- 4 x 4.2mm lens
- Ultra H.265,H.265, H.264, MJPEG
- ONVIF Conformance
- IP67
Product Documents
Optics
- Fifth-generation infrared technology, up to 50m (164ft) IR distance illumination
- IR anti-reflection window to increase the infrared transmittance
- Smart IR
- 2D/3D DNR (Digital Noise Reduction)
- 120dB true WDR
- Support a horizontal viewing angle of 180°
Compression
- Ultra H.265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
- 4096×1800@30fps supported
Network
- ONVIF Conformance
Structure
- Intelligent temperature control technology
- Wide temperature range: -40°C to 70°C (-40°F to 158°F)
- Wide voltage range of ±25%
- Effective heat dissipation system
- IP67
| Series | Professional Series |
|---|---|
| Signal Type | |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Features | Ultra WDR 120DB, Starlight, Highlight Compensation, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio |
| Night Vision Type | Infra Red (IR) LED |
| Ingress Protection | IP67 |
| Audio Compression | |
| Night Vision Distance | 50 Meters (165 feet) |
| Alarm I/O | |
| Lens | 4.2mm |
| Edge Storage | |
| Country of Origin | China |
| CAMERA | |||||
| Sensor | 1/1.8″ progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 4 x 4.2mm lens | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 4.2mm | 50.4 (165.4ft) | 20.2(66.3ft) | 10.1(33.1ft) | 5.0(16.4ft) | |
| Angle of View (H) | 180° | ||||
| Angle of View (V) | 80° | ||||
| Angle of View (O) | 221.4° | ||||
| Adjustment Angle | Pan: -90°~90° | Tilt: -45°~60° | |||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Color: 0.002lux (F1.8,AGC ON) 0lux with IR |
||||
| Iris | F1.8 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| VIDEO | |||||
| Video Compression | Ultra H.265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 4096×1800:Max. 30 fps; Sub Stream: 1920×832:Max. 30 fps; Third Stream: 1280×560: Max. 30 fps |
||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| SMART | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| AUDIO | |||||
| Audio Compression | G7.11 | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHz | ||||
| STORAGE | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| NETWORK | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| INTERFACE | |||||
| Audio I/O | 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Network | 1*100M/1000M Base-FX SFP + 2*10M/100M/1000M Base-TX Ethernet | ||||
| GENERAL | |
| Power | AC24V/DC24V±25% |
| Power consumption | : 48W MAX |
| Dimensions | 259mmx211mmx115mm |
| Weight | 2.4kg(5.3lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F),
Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
