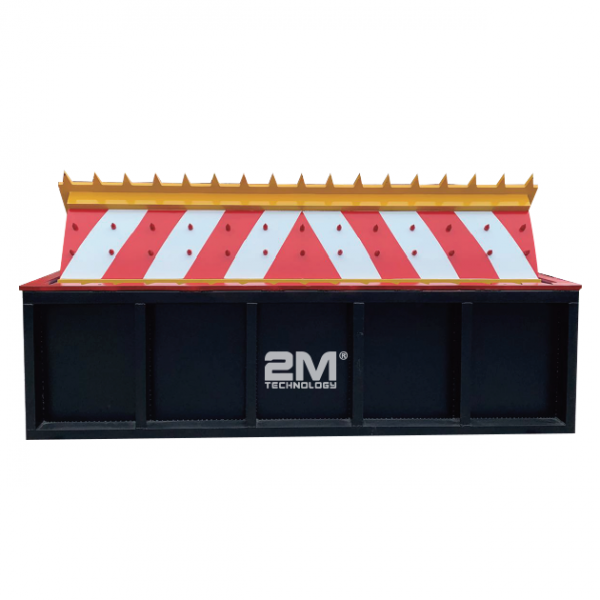

2MRB In-Ground Hydraulic Road Blockers


REQUEST QUOTE (for best price)
  • Emergency fast raise system
  • Emergency buttons with lock down
  • UPS backup for the electrical system
  • Inductive loop systems
  • Traffic lights and back indications systems

Product Documents

Downloads

2MRB In-Ground Hydraulic Road Blockers

Features:

  • Comprehensive understanding of attack resistance
  • Confidence in proven performance
  • Operational under power failure control
  • Reliable and dependable
  • Protection from multi-direction impact approach
  • Strength and durability
  • Flexibility to interface with all forms of access conditions

Available Options:

  • Emergency fast raise system
  • Emergency buttons with lock down
  • Accumulator systems for hydraulic operation in power failure conditions
  • Access and intercom systems
  • UPS backup for the electrical system
  • Interlocking systems to give air-lock type protection on sites with higher threat levels
  • Inductive loop systems
  • Traffic lights and back indications systems
  • Integral inset warning lights in A3 steel cover plate with anti-slip coating
  • F.O. emergency start-up circuit (about 1.5 seconds)
  • Equipment for manual operation
  • Heat-resistant
  • Traffic light with two lights (green-red)
  • Loop inductive detector
  • Inductive loop
  • Item is priced higher with additional features. Contact our representative for pricing.

Models available:

MODEL NUMBER DIMENSIONS (LxWxH) mm/ft
2MRB-10 3180 x 1260 x 880 (mm) Intercept Width: 3000mm /

10.4 x 4.1 x 2.9 (ft) Intercept Width: 9.8ft

2MRB-13 4180 x 1260 x 880 (mm) Intercept Width: 4000mm /

13.7 x 4.1 x 2.9 (ft) Intercept Width: 13.1ft

2MRB-17 5180 x 1260 x 880 (mm) Intercept Width: 5000mm /

16.9 x 4.1 x 2.9 (ft) Intercept Width: 16.4ft

2MRB-20 6180 x 1260 x 880 (mm) Intercept Width: 6000mm /

20.3 x 4.1 x 2.9 (ft) Intercept Width: 19.7ft

2MRB Dimensions

Product Views

In-Ground Hydraulic Road Blockers views
In-Ground Hydraulic Road Blockers views
Country of Origin

China

Road Blocker Dimension (Intercept width+180mm) L x 1260 W x 880 H (Depth)
Road Blocker Height from Ground Level 650mm
Road Blocker Intercept Width 3m – 4m – 5m – 6m
Road Blocker Depth 880mm
Top Plate Thickness 25mm
Movement Principle Hydraulic
Rising Time 3-5s
Color Optional
Type of Use Intensive
Road Blocker Finish Anti-corrosion Treatment
E.F.O. Circuit for Emergency Rising Optional – E.F.O. rising time 1.5s
Protection Class IP67
Reflecting Adhesive Strip Optional
Led Warning Light Optional
Device for Manual Handling Optional
Voltage for Control Unit 380VAC/DC 12V, 50/60HZ
Rated Power 3KW (3m-4m-5m), 4KW (6m)
Hydraulic Station Dimension 700 x 500 x 1350 (LxWxH) (mm)
Life Units 10 years
Operating Temperature -40°C ~ 70°C
(for Low Temperatures See the Heating Resistance)
Operating Humidity ≤95% non-condensing humidity
Impact Tested 6800 kg/65kmh impact test, equal ASTM K8/M40
