2MS1F-4G5D Solar Solution with a 4K Ultra HD Vandal-resistant Fisheye Camera, NVR and 4G Router Standby 24hr x5 Days


REQUEST QUOTE (for best price)
  • 4K Ultra wide angle lens, 360° panoramic image
  • Max 4000 x 3000 resolution
  • Support PoE power supply
  • Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
  • IP66

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

2MS1F-4G5D Solar Solution with a 4K Ultra HD Vandal-resistant Fisheye Camera, NVR and 4G Router Standby 24hr x5 Days

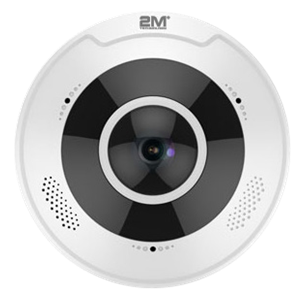

4K Ultra HD Vandal-resistant Fisheye: 2MFIP-12MIR20-P

  • 4K Ultra wide angle lens, 360° panoramic image
  • Max 4000 x 3000 resolution
  • Support PoE power supply
  • Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
  • IP66

Video Recorder : 2MN-8004-P4

  • 4 channel IP camera input
  • 4 PoE channels
  • 1 TB hard drive included

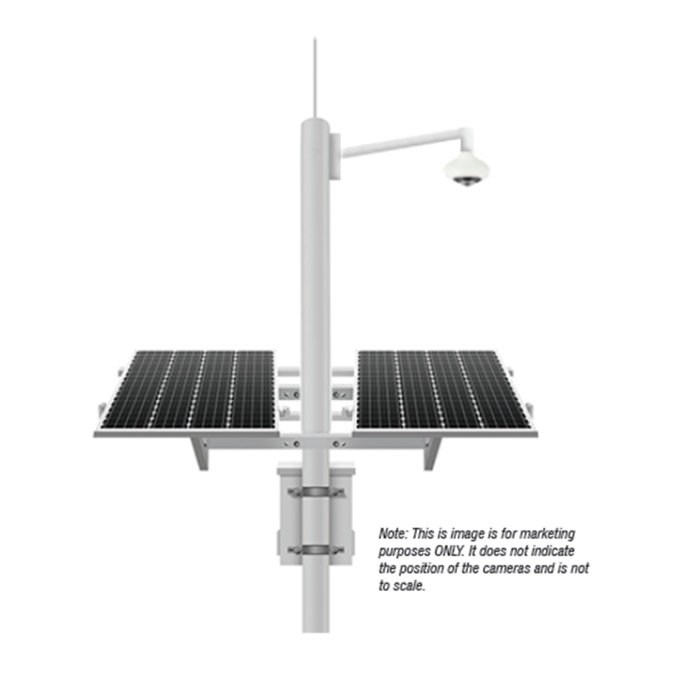

Solar Power System

  • Monocrystalline silicon solar cell module with a 25 year service life
  • Durable Lithium iron phosphate battery with an 8 year service life
  • Standby time: 24 hours for 5 days
  • Easy to manage controller
  • Integrated power cabinet

            Note: This is a special order item. Allow 4-6 weeks for delivery.

Country of Origin

China

CAMERA: 2MPIP-2MIR505X
Sensor 1/1.7", 12.0 megapixel, progressive scan, CMOS
Lens [email protected]
  DORI Distance Lens Detect (m) Observe (m) Recognize (m) Identify (m)
1.8 43.8 17.5 8.8 4.4
Angle of View (H) 360°
Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination Color: 0.05 Lux (F2.4, AGC ON) 0 Lux with IR
Day / Night IR-cut filter for day & night function
S/N Ratio >52dB
IR Range Up to 10m (33ft)
wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR
VIDEO
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
  Frame Rate Main Stream: 15fps (4000 x 3000, 3000 x 3000); 25fps (2560 x 2560); Sub Stream: 15fps (2000 x 1500, 2000 x 2000); 25fps (2000 x 2000); Third Stream: 15fps (720 x 576, 320 x 288)
