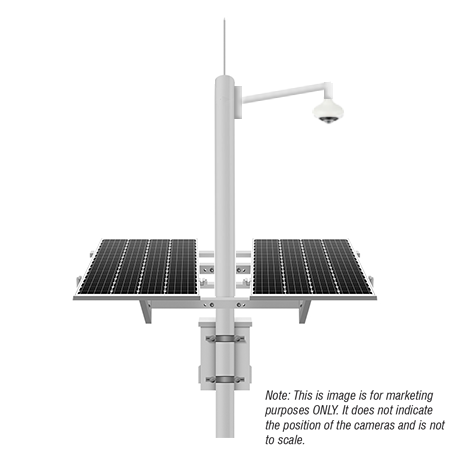

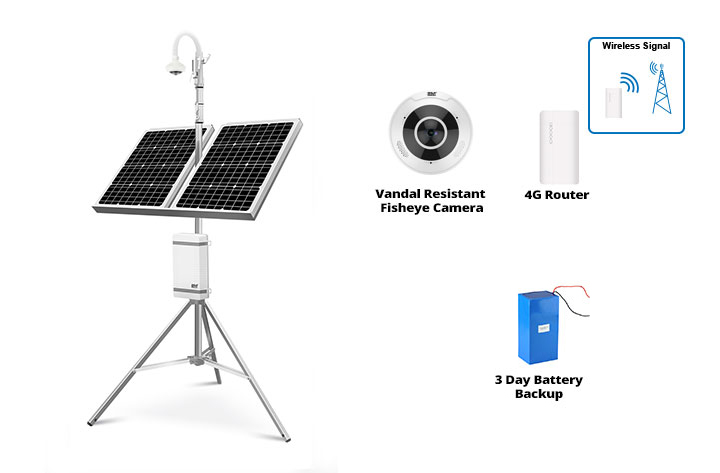

| CAMERA SPECIFICATIONS: 2MPIP-2MIR505X |
| Sensor |
1/1.7″, 12.0 megapixel, progressive scan, CMOS |
| Lens |
[email protected] |
| DORI Distance |
Lens |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 1.8 |
43.8 |
17.5 |
8.8 |
4.4 |
| Angle of View (H) |
360° |
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000s |
| Minimum Illumination |
Color: 0.05 Lux (F2.4, AGC ON) 0 Lux with IR |
| Day / Night |
IR-cut filter for day & night function |
| S/N Ratio |
>52 dB |
| IR Range |
Up to 10 m (33 ft) |
| Wavelength |
850 nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
DWDR |
| VIDEO |
| Video Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 15 fps (4000 x 3000, 3000 x 3000); 25 fps (2560 x 2560);
Sub Stream: 15 fps (2000 x 1500, 2000 x 2000); 25 fps (2000 x 2000);
Third Stream: 15 fps (720 x 576, 320 x 288) |
| Panorama |
25 fps (3000 x 2000); 15 fps (4000 x 3000, 3000 x 2000, 3000 x 1500) |
| Frame Rate PTZ |
15 fps (1920 x 1080) |
| Video Bit Rate |
128 Kbps ~ 16 Mbps |
| ROI |
Up to 8 areas |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| IMAGE |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| Dewarping |
N/A |
| HLC |
N/A |
| BLC |
Support |
| AUDIO |
| Audio Compression |
G.711 |
| Two-Way Audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8 KHz |
| STORAGE |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR, NAS (NFS) |
| NETWORK |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation, EZView, EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| LIVE VIEW DISPLAY |
| Mount Type |
Support table, wall, and ceiling |
| Display Mode |
Support 10 display modes in total (including display modes of mount types and decoding modes):
Display Mode: Original Image, Fisheye + 4PTZ, Panoramic
Preview Mode: Original Image, 360° Panoramic + 1PTZ, 180° Panoramic, Fisheye + 3PTZ, Fisheye + 4PTZ, 360° Panoramic + 6PTZ, Fisheye + 8PTZ |
| INTERFACE |
| Audio I/O |
Input: impedance 35 kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
2/1
Multiple alarm linkage editable |
| Built-In Mic |
Supported |
| Built-In Speaker |
Supported |
| Serial |
1 channel RS485 interface |
| Network |
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| CERTIFICATIONS |
| Certifications |
CE: EN 60950-1, FCC: FCC Part 15 |
| GENERAL |
| Power |
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption: Max 11.7W |
| Dimensions (Ø x H) |
Ø 149 mm x 55 mm (Ø 5.87″ x 2.17″ in.) |
| Net Weight |
0.5 kg (1.1 lb) |
| Material |
Metal + Plastic |
| Working Environment |
-35 °C ~ 60 °C (-31 °F ~ 140 °F); Humidity: ≤95% RH |
| Storage Environment |
-35 °C ~ 60 °C (-31 °F ~ 140 °F); Humidity: ≤95% RH |
| Surge Protection |
6 kv |
| Ingress Protection |
IP66 |
| Vandal Resistant |
IK10 |
| Reset Button |
Supported |
| SOLAR MODULE SPECIFICATIONS |
| MODULE DATA |
| Standard Power (W) |
170 |
300 |
380 |
| Working Voltage (V) |
18.86 |
32.01 |
38.41 |
| Working Current (A) |
8.51 |
8.86 |
8.86 |
| Open Circuit Voltage (V) Voc |
22.35 |
37.27 |
44.72 |
| Short-Circuit Current (A) Isc |
9.02 |
9.373 |
9.895 |
| Cell Efficiency (%) CE |
19.3 |
19.9 |
19.9 |
| Module Efficiency (%) ME |
>16.13 |
>17.43 |
>17.52 |
| Tolerance (%) |
±3% |
| Nominal Operating Cell Temperature |
47 °C (+/-2 °C) | 116.6 °F (+/-35.6 °F) |
| TEMPERATURE COEFFICIENTS |
| Short Circuit Current Coefficient Isc (%) |
0.04 °C / 32.1 °F |
| Open Circuit Voltage Coefficient Voc (%) |
-0.38 °C / 31.3 °F |
| Nominal Power Factor Pm (%) |
-0.47 °C / 31.2 °F |
| Working Current Coefficient Im (%) |
0.04 °C / 32.1 °F |
| Working Voltage Coefficient Vm (%) |
-0.38 °C / 31.3 °F |
| COMPONENTS & MECHANICAL DATA |
| Solar Cell |
156 x 156 Mono-crystalline Silicon |
| Number of Cell (pcs) |
4 x 9 series connection |
6 x 10 series connection |
6 x 12 series connection |
| Size of Module |
1485 mm x 668 mm / 4.9′ x 2.2′ ft |
1640 mm x 990 mm / 5.4′ x 3.2′ ft |
1960 mm x 990 mm / 6.4′ x 3.2′ ft |
| Front Glass Thickness |
3.2 mm / 0.1″ in |
| Surface Maximum Load Capacity |
2400 Pa – 2400 Pa |
| Allowable Hail Load |
23 m/s, 7.53 g | 23 m/s, 0.3 oz |
| Weight Per Piece |
15.26 kg / 33.6 lbs |
18.86 kg / 41.6 lbs |
22.16 kg / 48.9 lbs |
| Junction Box Type |
Pass the TUV or CE Certificate |
| Bypass Diode Rating (A) |
12 or None |
| Cable & Connector Type |
Pass the TUV or CE Certificate |
| Frame (Material Corners, etc.) |
30# / 35# |
40# / 35# |
| Back Board Type (Brand Type) |
TPT, PET, or KPF |
| Working Temperature |
-40 °C ~ 85 °C | -40 °F ~ 185 °F |
| Standard Test Conditions |
AM1.5 1000W/m2 25 °C/77 °F |
| CONTROLLER SPECIFICATIONS |
| System Voltage |
12V/24V/48V/96V automatic recognition |
| Max Charging Current |
40A |
| Fast Charging Voltage |
14.0/28.0V/56V/112V (25 °C)/(77 °F) |
| Boost Charging Voltage |
14.5/29.0V/58.0V/116V (25 °C)/(77 °F) |
| Equalization Charging Voltage |
14.8/29.6V/59.2V/118.4V (25 °C)/(77 °F) |
| Float Charging Voltage |
13.7/27.4V/54.8V/109.6V (25 °C)/(77 °F) |
| Low Voltage Alarm |
11.0/22.0/44.0/88.0V |
| Low Voltage Disarming |
12.5/25.0V/50.0V/100.0V |
| Storage Cell Type |
Liquid, Gel, Lithium |
| Temperature Compensation |
-4.17 mV/K per cell (boost charging, equalization charging);
-3.33 mV/K per cell (float charging) |
| Solar Power End Max Voltage |
55V/100V/150V/300V |
| Storage Cell Max Voltage |
DC 280V |
| Cable Length |
120 mm/80 mm | 4.7″/3.1″ in |
| High Protection Voltage for Storage Cell |
15.5/31.0/62V/124V |
| Communication Protocol |
RS232/RS485/TCP/IP transmission wired or wireless by GPRS/3G/4G etc. |
| Recommended Wire Diameter |
6 mm2 |
| Max Current Consumption |
8 mA / 16 mA / 24 mA |
| Working Temperature |
-40 °C ~ 60 °C |
| Protection Level |
IP30 ~ IP68 |
| Altitude (for reference) |
4000 ~ 5000 m | 2.5 miles ~ 3.1 miles |
| BATTERY SPEFICIATIONS |
| Voltage |
12.8 V |
| Max Capacity |
230 AH |
| Discharge Stop Voltage |
11.2 V |
| Charge Stop Voltage |
14.4 V |
| Working Temperature |
-10 °C ~ 70 °C | 14 °F ~ 158 °F |
| Service Life |
2000 – 2500 circle life |
| Features |
Deep discharge depth, no memory, environmental protection, portable, long life |
