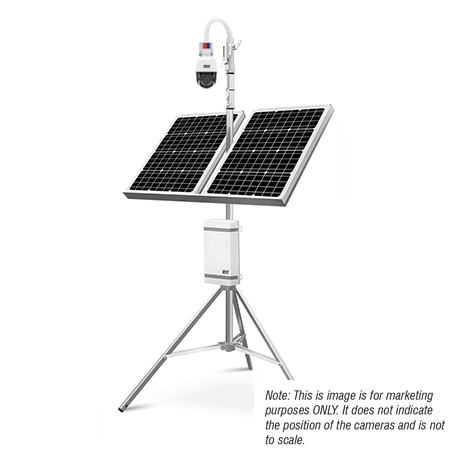

Name: 2MSP1P-4G3D Portable Solar Solution with Deterrent Motorized PTZ Dome and 4G Router Standby 24hr x 3 Days
SKU: 2MSP1P-4G3D
Price: 14500.00 USD
Availability: InStock

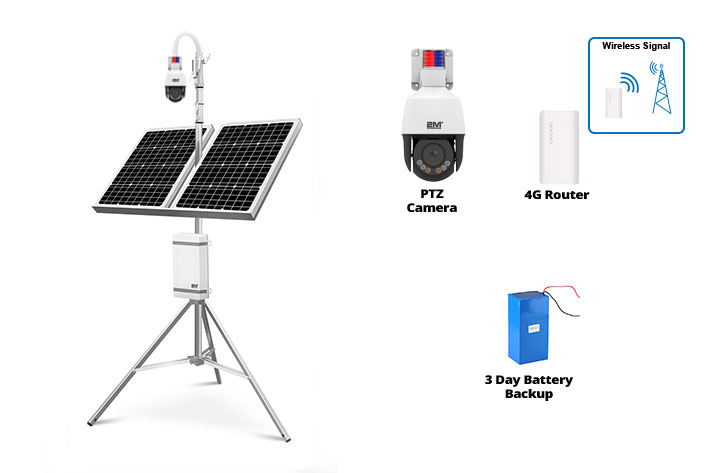

2MSP1P-4G3D Portable Solar Solution with Deterrent Motorized PTZ Dome and 4G Router Standby 24hr x 3 Days:

Features:

PTZ Camera: 2MPIP-2MIR505X
• Light Predator illumination
• 2MP PTZ camera
• 5x optical zoom
• up to 50m (164 ft) night vision and 10m (33 ft) warm light distance
• With wall mount

Solar Power System
• Monocrystalline silicon solar cell module with a 25 year service life
• Durable Lithium iron phosphate battery with an 8 year service life
• Standby time: 24 hours for 3 days
• Easy to manage controller
• Integrated power cabinet

Note: More cameras can be added. Further customization is available. Price will change accordingly.

SKU: 2MSP1P-4G3D Categories: Off the grid Portable Solar CCTV Systems, Solar Powered CCTV Tags: 2MSP1P-4G3D, 3 Days, 4G Router, Deterrent, Dome, Motorized, Portable, ptz, Solar Solution, Standby 24hr

Country of Origin	China

CAMERA: MODEL 2MPIP-2MIR505X
Sensor		1/2.8″ progressive scan, 2.0 megapixel, CMOS
Lens		2.8~12mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8mm	43.4	17.4	8.7	4.3
	12mm	186.2	74.5	37.2	18.6
Angle of View (H)		32.5°~95.7°
Angle of View (V)		18.4°~52.2°
Angle of View (O)		36.9°~100.8°
Shutter		Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination		Color:0.001 lux (F1.6,AGC ON) 0 lux with IR
Day/Night		IR-cut filter with auto switch (ICR)
Digital noise reduction		2D/3D DNR
S/N		>52 dB
IR Range		UP to 50m (164ft)
Wavelength		850nm
IR On/Off Control		Auto/Manual
Warm Light Range		UP to 10m (33ft)
WDR		120dB

	VIDEO
	Video Compression	Ultra 265,H.265, H.264, MJPEG
	H.264 code profile	Baseline profile, Main Profile
	Frame Rate	Main Stream:1080P (19201080):Max. 30 fps; 720P (1280×720): Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: CIF (352288): Max. 30 fps
	Video Bit Rate	128 Kbps~16 Mbps
	OSD	Up to 8 OSDs
	Privacy Mask	Up to 8 areas
	ROI	Up to 8 areas
	Motion Detection	Up to 4 areas
	White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
	Digital noise reduction	2D/3D DNR
	Smart IR	Support
	Flip	Normal/Vertical/Horizontal/180°
	Dewarping	Support
	HLC	Supported
	BLC	Supported
	AUDIO
	Audio Compression	G.711
	Suppression	Supported
	Sampling Rate	8 KHZ
	STORAGE
	Edge Storage	Micro SD, up to 128 GB
	Network Storage	ANR, NAS(NFS)


NETWORK
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Client	Android®, IPhone®, 2M Station, 2M Guard
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Web Browser	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
PAN & TILT
Pan Range	345°
Pan Speed	0.1°/s ~ 50°/s
Pan Speed	Preset speed: 50°/s
Tilt Range	90°
Tilt Speed	0.1° ~ 40°/s
Tilt Speed	Preset speed: 40°/s
Number of Presets	256
Patrol	Preset patrol, Route patrol
INTERFACE
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
Alarm Light	Supported
CERTIFICATIONS
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
GENERAL
Power	DC 12V±25%, PoE (IEEE802.3 at)
Power	Power consumption: Max 16 W
Dimensions (Ø x H)	Ø 133 x 269.4 (mm) (Ø 5.2″x 10.6″ in.)
x	0.87 kg (1.92lb)
Gross Weight	1.13 kg (2.49lb)
Material	Metal + Plastic
Working Environment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH (non-condensing)
Storage Environment	-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP66
Reset Button	Supported

SOLAR MODULE SPECIFICATIONS
MODULE DATA
Standard Power (W)	170	300	380
Working Voltage (V)	18.86	32.01	38.41
Working Current (A)	8.51	8.86	8.86
Open Circuit Voltage (V) Voc	22.35	37.27	44.72
Short-circuit Current (A) Isc	9.02	9.373	9.895
Cell Efficiency (%) CE	19.3	19.9	19.9
Module Efficiency (%) ME	>16.13	>17.43	>17.52
Tolerance (%)	±3%
Nominal Operating Cell Temperature	47°C (+/- 2°C) \| 116.6°F (+/- 35.6°F)
TEMPERATURE COEFFICIENTS
Short Circuit Current Coefficient Isc (%)	0.04°C / 32.1°F
Open Circuit Voltage Coefficient Voc (%)	-0.38°C / 31.3°F
Nominal Power Factor Pm (%)	-0.47°C / 31.2°F
Working Current Coefficient Im(%)	0.04°C / 32.1°F
Working Voltage Coefficient Vm (%)	-0.38°C / 31.3°F
COMPONENTS & MECHANICAL DATA
Solar Cell	156 x 156 Mono-crystalline silicon
Number of Cell (pcs)	4 x 9 series connection	6 x 10 series connection	6 x 12 series connection
Size of Module	1485 x 668 mm/ 4.9′ x 2.2′ ft	1640 x 990 mm/ 5.4′ x 3.2′ ft	1960 x 990/ 6.4′ x 3.2′ ft
Front Glass Thickness	3.2mm \| 0.1″ in
Surface Maximum Load Capacity	2400-5400Pa
Allowable Hail Load	23m/s, 7.53g \| 23m/s, 0.3oz
Weight Per Piece (kg)	15.26kg/33.6 lbs	18.86/41.6 lbs	22.16/48.9 lbs
Junction Box Type	Pass the TUV or CE Certificate
Bypass Diode Rating (A)	12 or None
Cable & Connector Type	Pass the TUV or CE Certificate
Frame (Material Corners,etc.)	30# / 35#	40# / 35#
Back Board Type (Brand Type)	TPT, PET or KPF
Working Temperature	-40°C to 85°C \| -40°F to 185°F
Standard Test Conditions	AM1.5 1000W/m2 25°C/77°F

CONTROLLER SPECIFICATIONS
System Voltage	12V/24V/48V/96V automatic recognition
Max Charging Current	40A
Fast Charging Voltage	14.0/28.0V/56V/112V(25°C)/(77°F)
Boost Charging Voltage	14.5/29.0V/58.0V/116V(25°C)/(77°F)
Equalization Charging Voltage	14.8/29.6V/59.2V/118.4V(25°C)/(77°F)
Float Charging Voltage	13.7/27.4V/54.8V/109.6V(25°C)/(77°F)
Low Voltage Alarm	11.0/22.0/44.0/88.0V
Low Voltage Disarming	12.5/25.0V/50.0V/100.0V
Storage Cell Type	Liquid, Gel, Lithium
Temperature Compensation	-4.17mV/K per cell (boost charging, equalization charging); -3.33mV/K per cell (float charging)
Solar Power End Max Voltage	55V/100V/150V/300V
Storage Cell Max Voltage	DC280V
Cable Length	120mm/80mm \| 4.7″ in/3.1″ in.
High Protection Voltage For Storage Cell	15.5/31.0/62V/124V
Communication Protocol	RS232/RS485/TCP/IP transmission wired or wireless by GPRS/3G/4G etc.
Recommended Wire Diameter	6mm2
Max Current Consumption	8mA /16mA /24mA
Working Temperature	-40°C ~ 60°C
Protection Level	IP30~IP68
Altitude (for reference)	4000~5000m \| 2.5~3.1 miles

BATTERY SPECIFICATIONS
Voltage	12.8V
Max Capacity	230AH
Discharge Stop Voltage	11.2V
Charge Stop Voltage	14.4V
Working Temperature	-10°C~70°C \| 14°F to 158°F
Service Life	2000-2500 circle life
Features	Deep discharge depth, no memory, environmental protection, portable, long life
