- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 8-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920 x 1080
- Long transmission distance over coax cable
8 Channel Digital Video Recorders DVRs, Digital Video Recorders, Surveillance

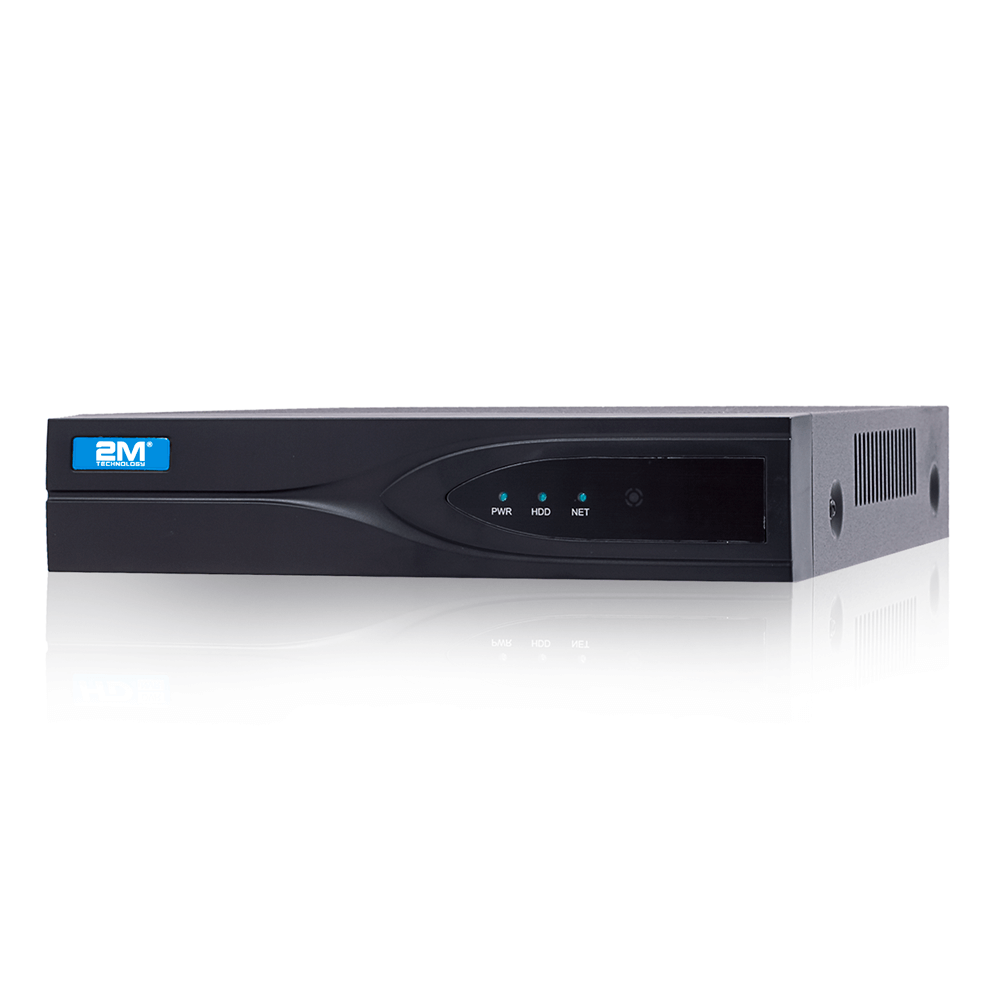

2MT-4088 8-CH Digital Video Recorder
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 8-channel BNC input
- Up to 8MP resolution for recording
- Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920 x 1080
- Long transmission distance over coax cable
Product Documents
Downloads
| Signal Type | |
|---|---|
| Number of Channels | |
| PoE Channels | |
| Internal Hard Drives SATA Ports | 2 SATA Hard Drives |
| Series | Essential Series |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Country of Origin | China |
| VIDEO/AUDIO INPUT | |
| Analog Video Input | 8-ch, BNC |
|
IP Video Input |
8-ch(only IP up to 16ch), each channel up to 4K |
| Support AHD input: | |
| 8MP@15fps | |
| 5MP@20fps | |
| 4MP@30fps | |
| 3MP@30fps | |
| 1080P@30fps | |
| 720P@60fps | |
|
Supported Analog Camera Types |
Support TVI input: 8MP@15fps 5MP@20ps 4MP@30fps 3MP@20fps 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 4MP@30fps 1080P@30fps 720P@60fps Support CVBS input |
| Audio Input | 4-ch, RCA |
| Two-way Audio | 1-ch,RCA |
| Channel Associated Audio | 4-ch, RCA |
| NETWORK | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| VIDEO/AUDIO OUTPUT | |
| CVBS Output | 1-ch, BNC |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,
1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
HDMI Output |
4K(3840X2160)/60Hz,
4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| ENCODING | |
|
Recording Frame Rate |
Main stream: 8MP@8fps 5MP@12fps 4MP@15fps 3MP@18fps 2MP@25fps 720P@30fps Sub stream: D1@30fps(Max) |
|
Recording Resolution |
8MP/5MP/4MP/3MP/1080P/96
0P/720P/960H/4CIF/CIF |
| HARD DISK | |
| SATA | 2 SATA interface |
| Capacity | Up to 10TB for each HDD |
| EXTERNAL INTERFACE | |
| Network Interface | 1RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel:1 x USB3.0, Front panel:1xUSB2.0 |
| Serial Interface | 1 x RS485 |
| Alarm In | 8 |
| Alarm Out | 4 |
| GENERAL | |
| Power Supply | 12V DC |
| Power Consumption | ≤ 8 W (without HDD) |
| Working Temperature | -10°C~+ 55°C (+14°F~+131°F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Dimensions(W×D× H) | 380 x 315 x 53 (mm) (15″ × 12.4″×2.1″) |
| Weight (without HDD) | ≤1.9 Kg ( 4.19lb ) |
