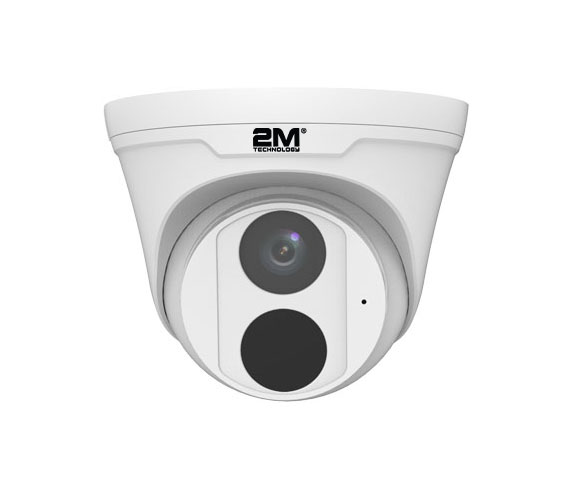

2MTIP-4MIR30-G 4MP Fixed Eyeball Network Camera
Features:
| Dimensions | 4.6 × 3.8 in |
|---|---|
| Camera Type | Eyeball Camera |
| Cameras Signal Type | IP (Network) |
| Resolution | 4MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Lighting Distance | Up to 30m |
| IP Rating | IP67 |
| Country of Origin | China |
| CAMERA | |||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F1.6 | ||||
| Dori Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |
| Angle of View (H) | 105.3° | ||||
| Angle of View (V) | 57° | ||||
| Angle of View (O) | 136.9° | ||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
|
Minimum Illumination |
Color: 0.005Lux (F1.6, AGC ON)
0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| VIDEO | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
|
Frame Rate |
Main Stream: 4MP (2688 x 1520), Max 25fps; 4MP (2560 x 1440),
Max 25fps; 3MP (2304 x 1296), Max 30fps; 2MP (1920 x 1080), Max 30fps; Sub Stream: 720P (1280 x 720), Max 25fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 4 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| IMAGE | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | Support | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| STORAGE | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| AUDIO | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| NETWORK | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | 2M Guard |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| INTERFACE | |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| CERTIFICATIONS | |
| Certifications | CE: EN 60950-1, FCC: FCC Part 15 |
| GENERAL | |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 3W | |
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) |
| Net Weight | 0.35kg (0.77lb) |
|
Material |
Front cover: metal Rear cover: plastic Bracket: plastic
Bottom plate: metal |
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
