2MTIP-5MIR30-E 5MP Fixed Turret Network Camera
REQUEST QUOTE (for best price)
- Smart IR
- 3D DNR
- Region of Interest (ROI)
- ONVIF Conformance
- PoE Support
- IP67
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents

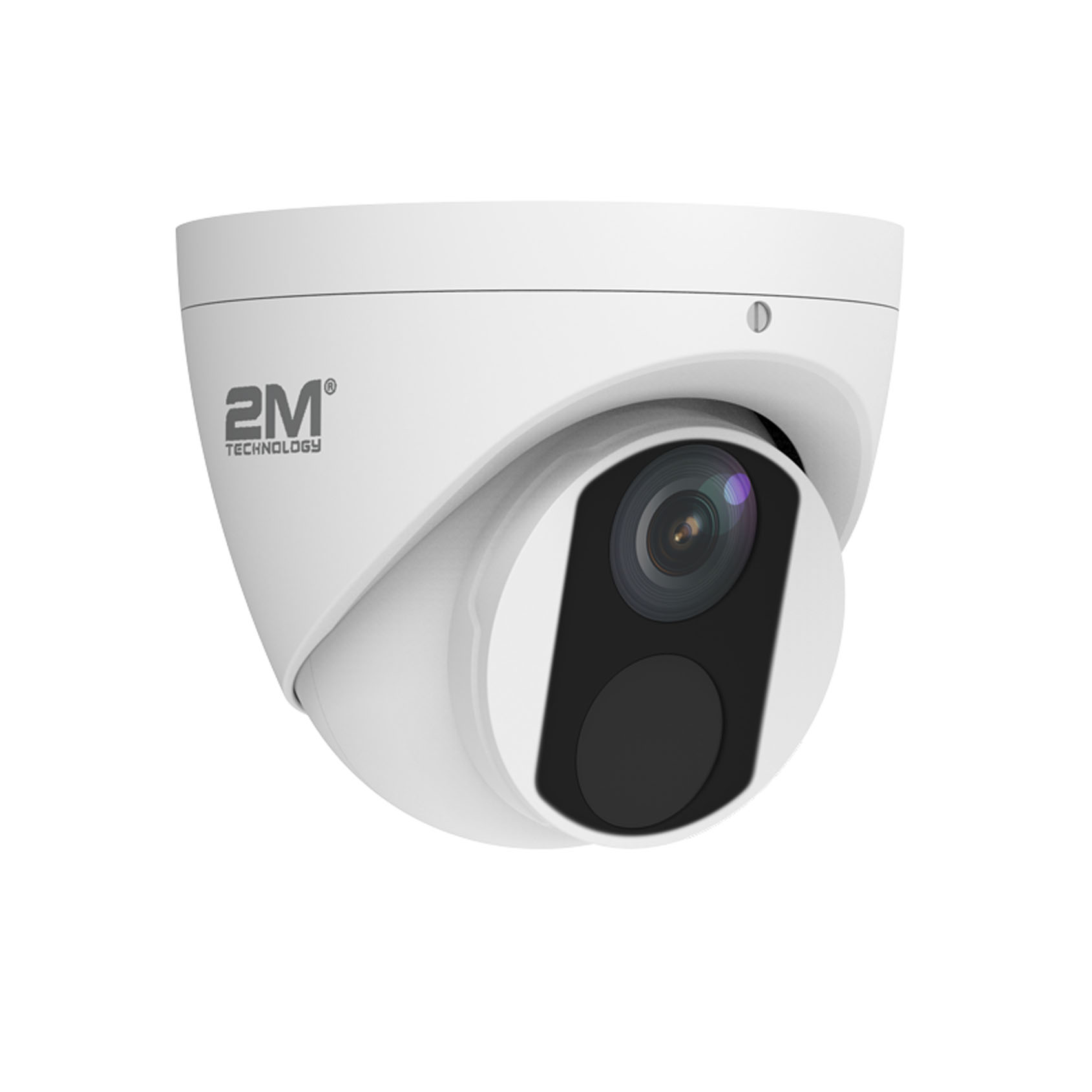

The 2M Technology 2MTIP-5MIR30-E 5MP Fixed Dome Network Camera comes with Smart IR technology. Additionally, the network camera offers 3D digital noise reduction for optimal footage quality. Further, the fixed camera has region of interest (ROI) capabilities and follows ONVIF conformance. The camera also supports PoE power supply and has an IP67 rating.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265,H.264,MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
| Weight | 0.44 lbs |
|---|---|
| Signal Type | |
| Series | Essential Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Lens | Fixed 2.8mm Lens |
| Night Vision Type | Infra Red (IR) LED |
| Night Vision Distance | 30 Meters (100 feet) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| Camera | ||||||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||
| 4.0 | 60 | 24 | 12 | 6 | ||||
| Angle of view (H) | 105.3° | 79.7° | ||||||
| Angle of View (V) | 69.5° | 51.8° | ||||||
| Angle of View (O) | 136.9° | 98.0° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
|||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Noise Reduction | 2D/3D | |||||||
| S/N | >52dB | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Max. Resolution | 2592*1944 | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream:720P (1280*720), Max 20fps |
|||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | ||||||||
| Behavior Detection | Intrusion, Motion detection,Tampering alarm | |||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | DC 12V±25%,PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 4W | ||||||||
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | |||||||
| Weight | 0.35kg (0.77lb) | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
