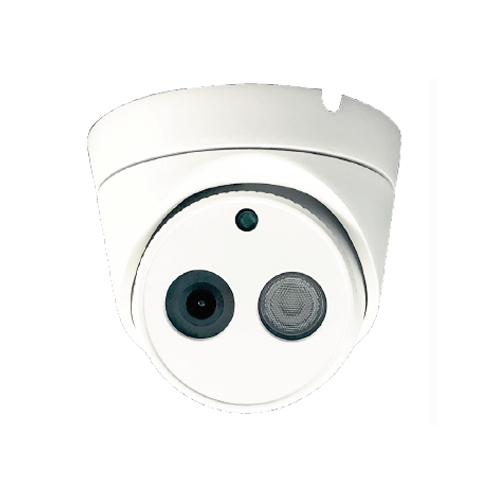

2MTT-5MIR20 5MP TVI 4-in-1 Fixed Lens Turret Camera
- SONY IMX307 2MP starlight CMOS, capture moving images.
- Hybrid Coaxial high-definition output, Excellent performance, clear and bright picture
- 0.1Lux @ (F1.2,AGC ON), 0 LUX with IR
Product Documents
Downloads
Features:
- SONY IMX326 5MP progressive scan CMOS to capture the moving images
- Hybrid coaxial high-definition output, Excellent performance with clear and bright picture
- 0.1Lux @ (F1.2,AGC ON), 0 LUX with IR
- IR-CUT, CDS external control, D/N
- OSD, suitable for user-defined settings.
- Supports DWDR, 2D-DNR, 3DNR
- UTC Function
| Signal Type | |
|---|---|
| Resolution | 5 Megapixel (2560 x 1960) |
| Night Vision Type | Infra Red (IR) LED |
| Night Vision Distance | 20 Meters (65 feet) |
| Country of Origin | China |
| CAMERA | |
| Sensor | 1/2.9″ Sony IMX307 |
| System | PAL/NTSC |
| Effective Pixel | 1920(H)x1080(V) |
| Lens | 2.8mm Fixed |
| IR Range | 20m |
| Illumination | 0.001Lux@(F1.2,AGC ON)，0LUX with IR |
| Shutter | AUTO |
| D/N | EXT (Default) / AUTO / COLOR / B/W |
| Synchronously | Internal |
| FPS | 1080P@25fps / 1080P@30fps |
| Video Output | AHD/TVI/CVI/CVBS (Optional) |
| OSD MENU | |
| Exposure | Shutter/AGC/Sense-up/Brightness/DWDR |
| Backlight | Off/BLC/HLC |
| WB | ATW /AWC-SET/Indoor/Outdoor/ Manual/AWB |
| D/N mode | External Switch /Auto/Color/B&W |
| DNR | 2DNR/3DNR |
| Video Setting | Contrast/Sharpness/Color gain/DNR/System/DWDR |
| Function | Cam / Digital function / Motion detection / Privacy mask / Language / DPC / RS485 |
| Adjustment | Sharpness/LCD/LSC/NTSC/PAL |
| Exit | Save & Exit/Reset/Not saved |
| GENERAL | |
| Operation temperature | -20°C to 60°C |
| Working humidity | Relative humidity less than 90 % |
| Power | DC12V |
