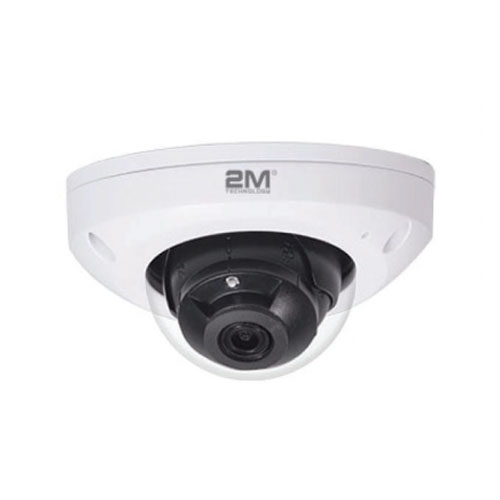

2MVIP-2MIR15A-P 2MP Vandal-Resistant IR Fixed Mini Dome Camera
Key Features:
-Smart IR
-2D/3D DNR
-Car-grade LEDs
-ONVIF Conformance
-IK10 Vandal Resistant
-IP66
Product Documents
The 2M Technology 2MP Vandal-resistant IR Fixed Mini Dome Camera is feature rich surveillance camera. In addition to the product’s day/night features, the camera includes Car-grade LEDs and uniform light compensation. With the built-in microphone, the product is able to optimize the sound quality of the video compression. Although smaller in size weighing only 0.55 LBS, this Mini Dome camera comes with 2D/3D DNR (Digital Noise Reduction). Lastly, the device has been tested and proven durability with a rating of IP67.
Key Features
Optics
- Day/night functionality
- SmartIR, up to 15 m (49ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Car-grade LEDs, brighter and uniform light compensation
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- Built-in microphone
- IK10 vandal resistant
- IP66
| Weight | 0.55 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Audio Input |
| Audio Compression | |
| Night Vision Distance | 15 meters (49 Feet) |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| Camera | ||||||||
| Sensor | 1/2.9″, progressive scan ,2.0 megapixel, CMOS | |||||||
| Lens | [email protected] | 4.0 [email protected] | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 45 | 18 | 9 | 4.5 | ||||
| 4mm | 64.3 | 25.7 | 12.9 | 6.4 | ||||
| Angle of View (H) | 107.8° | 82.0° | ||||||
| Angle of View (V) | 56.7° | 41.4° | ||||||
| Angle of View (O) | 140.2° | 100.9° | ||||||
| Adjustmentangle | Pan: 0°~360° | Tilt: 0°~90° | Rotate:0°~360° | |||||
| Shutter | Auto/Manual, 1/6~1/100000 s | |||||||
|
Minimum Illumination |
Colour: 0.005Lux (F2.0, AGC ON)
0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | ≥52dB | |||||||
| IR Range | Up to 15m (49 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265,H.265, H.264,MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
|
Frame Rate |
Main Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps |
|||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition: | Face detection,Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, Up to 128 GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|
Audio I/O |
audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5W | |
| Dimensions (Ø x H) | Φ110 x 61 mm (Ø4.3” x 2.4”) |
| Weight | 0.25 kg (0.55 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP66 |
| Vandal Resistant | IK10 |
