Network IP Cameras, Network Dome Cameras, Professional Series

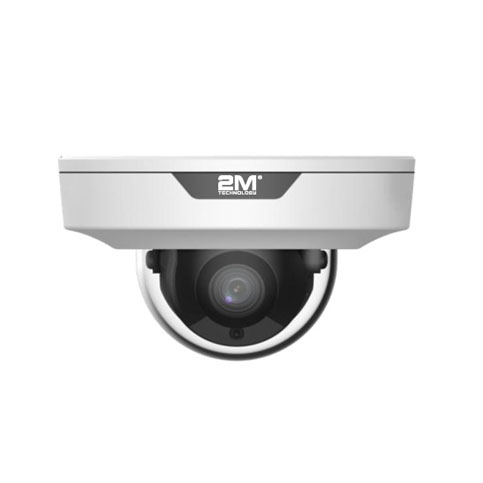

2MVIP-4MIR30WF-GS 4MP Wire-Free Network IR Fixed Dome Camera
Product Documents
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure
- Built-in Mic
- Micro SD, up to 256GB
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- 3-Axis
- NDAA Approved
| Series | Professional Series |
|---|---|
| Signal Type | |
| Resolution | 4 Megapixel (2592 x 1520) |
| Lens | Fixed 2.8mm Lens |
| Audio Compression | |
| Night Vision Type | Infra Red (IR) LED |
| Edge Storage | |
| Features | Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio |
| Alarm I/O | |
| Country of Origin | China |
| CAMERA | |
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens | [email protected] |
| Angle of View (H) | 105.3° |
| Angle of View (V) | 57.0° |
| Angle of View (O) | 136.9° |
| Adjustment angle | Pan: 3° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2048*1520), Max 30fps;1080P (1920*1080), Max 30fps; |
| Sub Stream: 720P (1280*720), Max 30fps; | |
| Third Stream: 4CIF(704*576), Max 30fps | |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Interface | |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Built-in Mic | Supported |
| Alarm I/O | 1-Jan |
| Network | 10M/100M Base-TX Ethernet |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max 5.5W |
| Dimensions (Ø x H) | Φ 108.5 x 61.6mm (Φ 4.28″ x 2.43″) |
| Weight | 0.22kg (0.49lb) |
| Working Environment | -35°C~60°C (-31°F~140°F) |
| Humidity | ≤95% RH (non-condensing) |
| Reset Button | Supported |
