2MVIP-5MIR30-E 5MP Vandal-resistant Network IR Fixed Dome Camera
Key Features:
- Smart IR (up to 30m distance)
- 2D/3D DNR
- Region of Interest (ROI)
- ONVIF Conformance
- IK10 Vandal Resistance
- IP67
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents

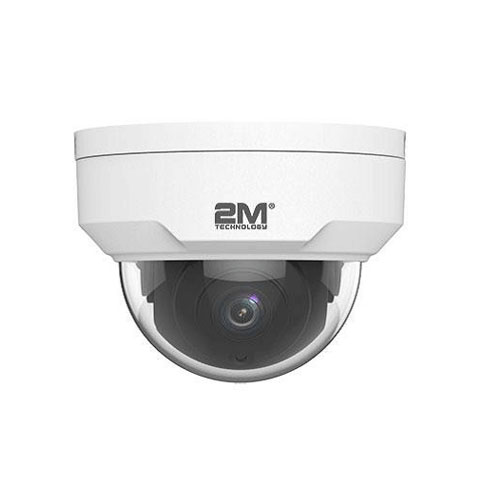

The 2M Technology 2MVIP-5MIR30-E 5MP Network Dome Camera features Smart IR technology, giving the user up to 30 meters IR distance. Additionally, the dome camera includes 2D/3D digital noise reduction to ensure quality footage. The dome camera has region of interest (ROI) capabilities and follows ONVIF conformance. Further, the IR dome camera offers IK10 vandal resistance and an IP67 rating.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F) Wide voltage range of ±25%
- IK10 vandal resistant IP67
| Weight | 0.99 lbs |
|---|---|
| Resolution | 2 Megapixel (1920 x 1080) |
| Series | Essential Series |
| Signal Type | |
| Lens | Fixed 2.8mm Lens |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| Camera | ||||||
| Sensor | 1/2.7″, progressive scan, 5.0 megapixel, CMOS | |||||
| Lens | [email protected] | |||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 42 | 16.8 | 8.4 | 4.2 | ||
| 4.0mm | 60 | 24 | 12 | 6 | ||
| Angle of View (H) | 105.3° | |||||
| Angle of View (V) | 69.5° | |||||
| Angle of View (O) | 136.9° | |||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | ||||
| Shutter | Auto/Manual, 1/6~1/100000 s | |||||
|
Minimum Illumination |
Colour: 0.02Lux (F2.0, AGC ON)
0Lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
|
Frame Rate |
Main Stream:5MP (2592*1944): Max. 15 fps; Sub Stream:720P (1280*720): Max.20 fps; | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||
|
Compatible Integration |
ONVIF (Profile S), API |
|||||
| Interface | ||||||
| Network | 1 RJ45 100M Base-TX Ethernet | |||||
| General | ||||||
|
Power |
DC12V±25%, PoE (IEEE802.3 af) | |||||
| Power consumption: Max.5.5w | ||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||
| Weight | 0.45kg (0.99lb) | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH (non-condensing) | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
