Analog HD - All-in-One Security Cameras, Analog Turret/Eyeball Cameras

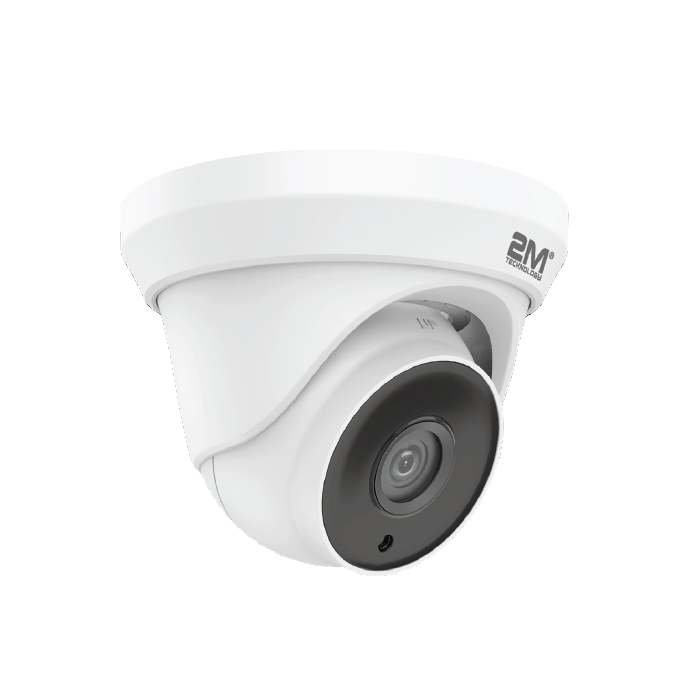

2MVT-2MIR20SL 2MP TVI Vandal Turret Camera Fixed Lens with Starlight
- 2 MP high performance CMOS
- Analog HD output, up to 1080p resolution
- EXIR 2.0, smart IR, up to 30m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66
Product Documents
Downloads
2MP 4-in1 Fixed Lens Turret Camera with Starlight
Features:
- 2 megapixel high performance CMOS
- Analog HD output, up to 1080p resolution
- True Day/Night,
- Smart IR
- EXIR 2.0, smart IR, up to 30m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66
| Weight | .77 lbs |
|---|---|
| Dimensions | 4.33 × 4.33 × 3.67 in |
| Signal Type | |
| Resolution | 2 Megapixel (1920 x 1080) |
| Night Vision Type | Infra Red (IR) LED |
| Night Vision Distance | 30 Meters (100 feet) |
| Ingress Protection | IP66 |
| Country of Origin | China |
| CAMERA | |
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps; NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 103° |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Synchronization | Internal synchronization |
| MENU | |
| AGC | Low/middle/high |
| Day/Night Mode | Smart/color/BW(Black and White) |
| Backlight Compensation | Yes |
| WDR | D-WDR |
| Language | English, Chinese |
| Functions | Brightness, Sharpness, DNR, Mirror |
| INTERFACE | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| GENERAL | |
| Operation Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operation Humidity | Humidity: 90% or less (non-condensation) |
| Power Supply | 12 V DC±15% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP66 |
| Material | Metal/Plastic |
| IR Range | Up to 30m |
| Dimension (Diam x H) | Ø 110 x 93.2 (mm)/4.33″ x 3.67″ (in.) |
| Weight | 350 g (0.77 lb.) |
