Analog Dome Cameras, Analog HD - All-in-One Security Cameras

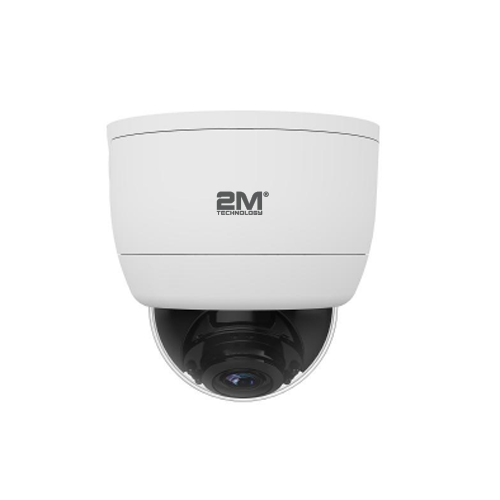

2MVT-2MIR35ZSL 4-IN-1 2MP Motorized Dome Camera with 5X and 30m IR
- 1/2.8″SONY Starvis Back-illuminated CMOS Sensor
- TVI/AHD/CVI/CVBS 4-IN-1
- 2.7-13.5mm Motorized Lens
- IR Distance Max. 30m
- IP66 Outdoor, OSD & UTC Support
Product Documents
Downloads
- 1/2.8″SONY Starvis Back-illuminated CMOS Sensor
- TVI/AHD/CVI/CVBS 4-IN-1
- 2.7-13.5mm Motorized Lens
- IR Distance Max. 30m
- IP66 Outdoor, OSD & UTC Support
| Signal Type | |
|---|---|
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| CAMERA | |
| Image Sensor | 1/2.8″ SONY Starvis Back-illuminated CMOS Sensor |
| Image Resolution | 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | AUTO / MANUAL |
| Scanning System | Progressive Scan |
| Video Output Mode | AHD/TVI/CVI: 2M@30fps/25fps |
| LENS | |
| Focus Length | 2.7-13.5mm Motor Zoom |
| Focus Control | Auto |
| Lens Type | Auto |
| NIGHT VISION | |
| IR Cut Filter | YES |
| Infrared LED | 42µ x 4PCS |
| Infrared Distance | 30M |
| IR Status | AGC Auto Control |
| CAMERA | |
| Starlight | YES |
| Day/Night | YES |
| OSD Menu | YES |
| WDR | YES |
| UTC | YES |
| Noise Reduction | 3DNR |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| GENERAL | |
| Housing | Metal, IP67 |
| Bracket | NO |
| Operation Temperature | -10°C~ 60°C RH95% Max |
| Storage Temperature | -20°C ~ 60°C RH95% Max |
| Power Source | DC12V±10%, 750mA |
| Dimension | Φ142 x 142(H) mm |
