Analog Dome Cameras, Analog HD - All-in-One Security Cameras

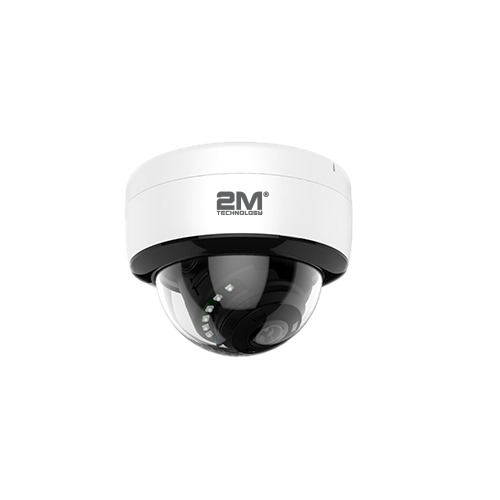

2MVT-5MIR25 5MP IR Metal Dome HD Camera
- 4-in-1 vandal dome camera
- 1/2.8″Sony335 CMOS 5.0M+NVP2477
- 12pcs SMD LEDs
- 15m IR Range
Product Documents
Downloads
- 4-in-1 vandal dome camera
- 1/2.8″Sony335 CMOS 5.0M+NVP2477
- 12pcs SMD LEDs
- 15m IR Range
- Standard match 2.8mm lens
- 3DNR
- Default TVI output
Additional Information
| Night Vision Type | Infra Red (IR) LED |
|---|---|
| Night Vision Distance | 25 Meters (80 Feet) |
| Resolution | 5 Megapixel (2560 x 1960) |
| Signal Type | |
| Vandal Resistant | IK10 |
| Country of Origin | China |
| Power System | NTSC |
| Sensor | IMX335 1/2.8 |
| DSP | NVP2477H |
| Active Pixel | 2560*1944 |
| SYNC. | Internal |
| Resolution | 5MP |
| VIDEO.OUT | A/T/C/CVBS |
| Minimum Illumination | 0.01Lux(F1.2) |
| Gama adjust | 0.45 |
| Electric Shutter | AUTO FLK 1/25-1/50000 |
| S/N Ratio | 48dB(min)(AGC closed) |
| NR | 2DNR OFF/LOW/MID/HIGH |
| 3DNR OFF/LOW/MID/HIGH | |
| WHITE Balance | ATW/AWC-SET |
| AGC | Level 0-15 |
| D-WDR | OFF/Auto |
| OSD | Yes |
| Language | Eng CHN1/2 GER FRA ITA SPA POL RUS POR NED TUR JPN |
| Day/Night | Auto、Color、B/W、Ext |
| Power Input | DC12V±1V |
| Power Dissipation | 85-95MA |
| Transmission distance | 75-5 300M |
| Operation Temperature | Temperature -10℃～+55℃,Humidity less than 85%RH |
| Weight | 1.5 lbs |
| color | Off white |
