Detectors, Inspection, Metal Detectors

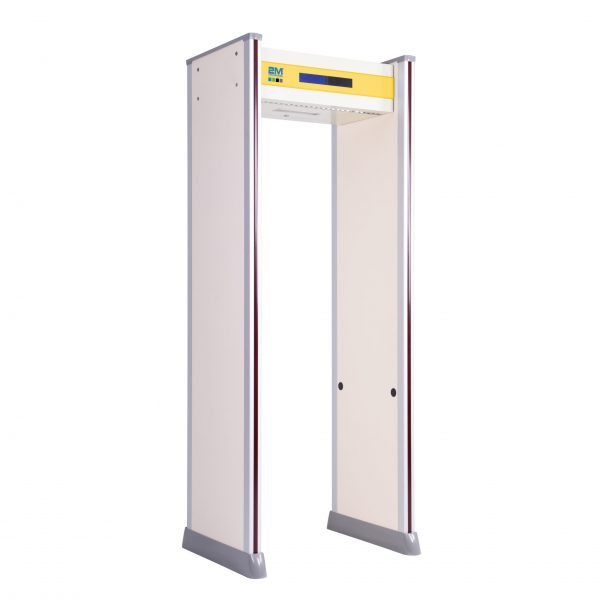

2MWT-O18Z Outdoor Rated, 18 Zone Walkthrough Metal Detector with Intelligent DSP
REQUEST QUOTE (for best price)
- Outdoor 18 zones
- ADA Compliant Model Available
- 18 zones to precisely identify multiple targets
- WIFI Network Capability option available
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
Certifications
- ISO9001; ISO14001; HSMS18001; CE
- Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
- In accordance with: EN60950, WN50081-1, EN50082-1
- Electric safety: EN60950
- Anti-interference standard: EN50082-1
Features
- Indoor 18 zones
- IP55 weather rated for outdoor use
- Extremely high sensitivity to find even the smallest of threats
- Operation: Keyboard and remote control
- User friendly interface operation for LCD
- Four LED light bars on both door panels: gives alarm corresponding to the height or human
- 18 zones identify multiple target locations from head to toe
- Sensitivity adjustable from Level 0 to 300 High: Can detect a clip; Low: Detects big metal articles such as knives, guns, copper, aluminum, zinc (more than 150g), bypasses metal in belt, buttons and
- Shock proof to avoid false
- Sound and light
- Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
- Tamper-Proof: operating system is password
- Adjustable operating frequencies: Helps eliminate the potential interference from X-ray units, radios and other electrical
- Mix distance between two walkthroughs: 3 meters at low sensitivity, 0.5 meters at high sensitivity
- Harmless to pregnant women and patients with pacemakers
- ADA Compliant
- WIFI Network Capability option available
- Connect with computer, camera, turnstile, etc… (optional)
SKU: 2MWT-O18Z
Categories: Detectors, Inspection, Metal Detectors
Tags: 18 Zone Walkthrough, 2MWT-O18Z, Inspection, Intelligent DSP, metal detector, Metal Detectors, Outdoor Rated, Special Order
Weight | 209.4 lbs |
---|---|
Dimensions | 87.4 × 32.3 × 20.6 in |
Country of Origin | China |
Zone Options | 18 zones |
Shock proof | Yes |
LED Lights | 4 |
Display | LCD |
Pinpoint Zones | Pinpoint zones to precisely identify multiple target locations from head to toe, can update 12 &18 zones |
Tracking | Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms |
Advanced Broadband Detection | Can detect ferrous and non-ferrous articles. |
Alarm | Audible and Visual Alerts |
Adjustable Sensitivity | From Level 0 to 99 |
Tamper Proof | Password Protected |
Operating Frequencies | Adjustable |
Distance | Mix distance between two Walk-throughs: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity. |
Safety | Harmless to pregnant women and heart pacemakers |
Electrical Current | AC215V~230V; 50/60Hz |
Power | 35W |
IP Rating | IP55 |
Work Environment | -20°C~+45°C |
Gross Weight | 209.4 lbs |
Outer Frame | 2220mm (h) x 820mm (w) X 522mm (d) 87.4" x 32.3" x 20.6" (HxWxD) (inches) |
Inner Frame | 2000mm (h) X 700mm (w) X 522mm (d) 78.7" x 27.6" x 20.6" (HxWxD) (inches) |
