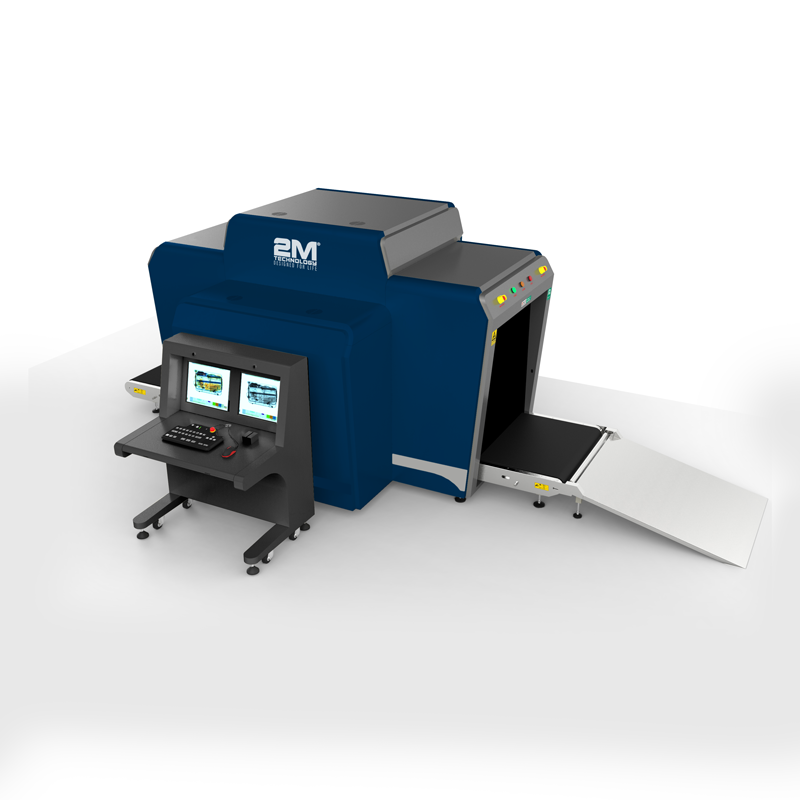

| PHYSICAL SPECIFICATIONS |
| Tunnel Size (LxH) |
1000 mm x 800 mm / 39.4" x 31.5" (in) |
| Unit Weight |
800 kg / 1763.7 lbs |
| Unit Size (LxWxH) |
3130 mm x 1295 mm x 1716 mm / 123.2" x 51" x 67.6" (in) |
| Gross Weight |
1000 kg / 2204.6 lbs (Packed on wooden pallet) |
| Packing Size |
#1: 242 cm x 143 cm x 198 cm / 95.3" x 56.3" x 77.9" (in)
#2: 122 cm x 90 cm x 141 cm / 48" x 35.4" x 55.5" (in) |
| GENERAL SPECIFICATIONS |
| Conveyor Speed |
0.22 m/s (0.72 ft/s) |
| Conveyor Height |
341 mm / 13.4" (in) |
| Conveyor Capacity |
200 kg / 440.9 lbs |
| X-Ray Dose/Inspection |
≤4 µSv |
| X-Ray Leakage |
≤1 µSv/h at any point 5 centimeters outside the external surface |
| Penetration |
34 mm /1.33" (in) steel |
| Wire Resolution |
Dia. 0.102 mm copper wire (AWG38) |
| Penetration Resolution |
Dia. 0.202 mm copper wire (AWG32) under three-step aluminum wedge 9.5 mm, 15.9 mm, 22.2 mm |
| Spatial resolution |
Horizontal: dia. 1.3 mm, Vertical: dia. 1.3 mm |
| Power Consumption |
Max. 1 KW |
| Power Current |
Max. 5 mA |
| Noise |
<60 dB |
| Film Safety |
Guarantee ASA/ISO1600 Film |
| X-RAY GENERATOR (SINGLE) |
| Anode Voltage |
140 KV - 160 KV Adjustable |
| Ray Direction |
Downward |
| Cooling / Duty Cycle |
Oil Cooling / 100% |
| IMAGE SYSTEM |
| X-ray Sensor |
L-Shaped Photodiode Array, 12bit deep |
| Image Display |
High resolution of 1024 x 1280 pixel; Image Grey Level: 4096 |
| Images Process |
24bit real time processing, 4 colors analysis, Images displayed marked date and ID No., Count the number of bags |
| Image Enhancement |
1-64times enlargement continuity, Color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organic/inorganic materials, local enhancement, pseudo color processing, edge enhancement, etc. |
| Image Recall |
30 images recallable |
| Explosives & Narcotics Detection |
Suspicious organics highlight (atomic number Zeff=7,8,9) |
| Alarm |
Alarm and box outlines the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection (TIP) |
Insertion of fictional but realistic images of threatening items into baggage during screening operation for training purposes to assess image identification capabilities |
| Image Archive |
Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
| Miscellaneous Functions |
Time/date display, counters, user management, system-on/X-ray on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and simulation training etc. |
| Network Applications (Optional) |
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, etc. |
| OPERATING ENVIRONMENT |
| Operation Temperature |
5 °C - 40 °C (41 °F - 104 °F) / 0% - 90% (non-condensing) |
| Storage Temperature |
-40 °C - 70 °C (-4 °F - 140 °F) / 10% - 90% (non-condensing) |
| Operation Power |
220 VAC(±10%) 50±3 Hz (Optional: 100 VAC, 110 VAC, 120 VAC, 200 VAC) |
| Stabilizer and UPS |
Stabilizer optional. UPS options: 15 mins, 30 mins, 60 mins etc. |
| COMPUTER AND OTHER |
| Monitor |
2 x 17" in. LCD monitors, 1280 x 1024, one console desk |
| RAM |
4 GB |
| Hard Disk |
2 TB |
| Keyboard |
Special designed |
| System |
Windows® 10 |
| Electric Roller |
Three-phase |
| COMPLIANCE |
| Certificates |
ISO19001; ISO14001; OHSMS18001; CE RoHS FDA FCC |
