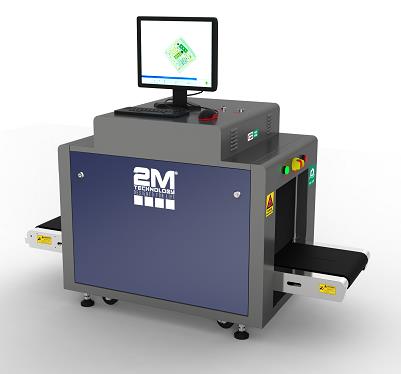

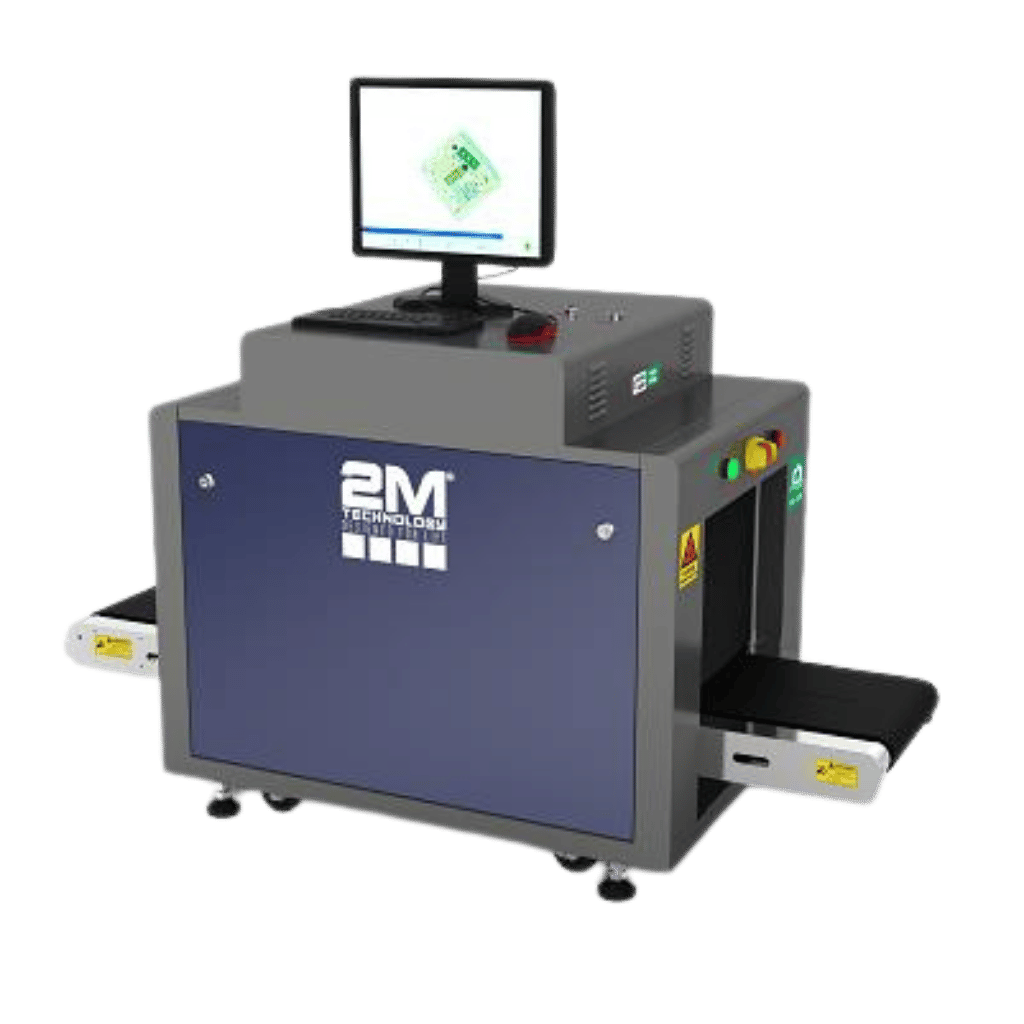

| PHYSICAL SPECIFICATIONS |
| Unit Weight |
202 kg |
| Unit Size (LxWxH) |
1531 mm x 668 mm x 860 mm |
| After packed in wooden pallet |
| Gross Weight |
265 kg |
| Packing Size (LxWxH) |
165 cm x 85 cm x 107 cm |
| GENERAL SPECIFICATIONS |
| Tunnel Size (LxW) |
420 mm x 330 mm |
| Conveyor Speed |
0.22 m/s |
| Conveyor Height |
273 mm |
| Conveyor Max Load |
50 kg |
| X-Ray Dose Per Each Inspection |
≤2 µGy |
| X-Ray Leakage |
<1 µGy/h at any point 5 cm outside the external surface |
| Steel Penetration |
8 mm guaranteed |
| Wire Resolution |
Dia. 0.0787 mm copper wire (AWG40) guaranteed |
| Penetration Resolution |
Dia. 0.202 mm copper wire (AWG32) guaranteed |
| Spatial Resolution |
Horizontal: dia. 1.3 mm, Vertical: dia. 1.0 mm |
| Power Consumption |
Max. 400 W |
| Noise |
<60 dB |
| Film Safety |
Guarantee ASA/ISO1600 Film |
| X-RAY GENERATOR (SINGLE) |
| Anode Voltage |
80 KV |
| Ray Direction |
Downward |
| Cooling / Duty Cycle |
Sealed Oil Cooling / 100% |
| IMAGING SYSTEM |
| X-Ray Sensor |
L-Shaped Photodiode Array, 12bit deep |
| Images Process |
24bit real time processing, 4 colors analysis, Images displayed marked date and ID No., Count the number of bags |
| Image Display |
High resolution of 1920 x 1080 pixel; Image Grey Level: 4096 |
| Image Enhancement |
1-32times enlargement continuity, Color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organic/inorganic materials, local enhancement, pseudo color processing, edge enhancement, etc. |
| Explosives & Narcotics Detection |
Suspicious organics highlight (atomic number Zeff=7,8,9) |
| Suspicious Alarm |
Alarm and box line the suspicious objects including hard to penetrate material, explosives, and drugs |
| Threat Image Projection (TIP) |
Insertion of fictional but realistic images of threatening items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Recall |
30 images recallable |
| Image Archive |
Up to 10,000 images stored automatically, enable transferring to USB disk, and converting to JPG format |
| Miscellaneous Functions |
Time/date display, counters, user management, system-on/X-ray on timers, power on self test, built-in diagnostic facilities, system log, system standby and simulation training, etc. |
| Options |
Dual-direction scanning, intelligent roller, etc. |
| OPERATING ENVIRONMENT |
| Operation Temperature / Humidity |
5 °C - 40 °C (41 °F - 104 °F) / 0% - 90% (non-condensing) |
| Storage Temperature / Humidity |
-20 °C - 60 °C / 10% - 90% (non-condensing) |
| Operation Power |
220 VAC (±10%) 50±3 Hz (Optional: 100 VAC, 110 VAC, 120 VAC, 200 VAC) |
| UPS |
Options: 5 mins, 30 mins, etc. |
| COMPUTER AND OTHER |
| Monitor |
One 17-inch LCD monitor, 1280 x 1024, no console desk |
| RAM |
1 GB |
| Keyboard |
Special designed |
| System |
Embedded Linux operating system, multi-core ARM, stable and reliable |
| COMPLIANCE |
| International |
ISO19001; ISO14001; ISO 45001; CE RoHS; FDA FCC |
