2MX-6550DH X-Ray Baggage Scanner Dual View, Two Generators
- Dual view technology with images from two angles
- Radiation safe
- Sens-Tech detection board and Hamamatsu detector
- High resolution, high penetration and good image quality
- High load-bearing capacity
- Multilingual operation
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads

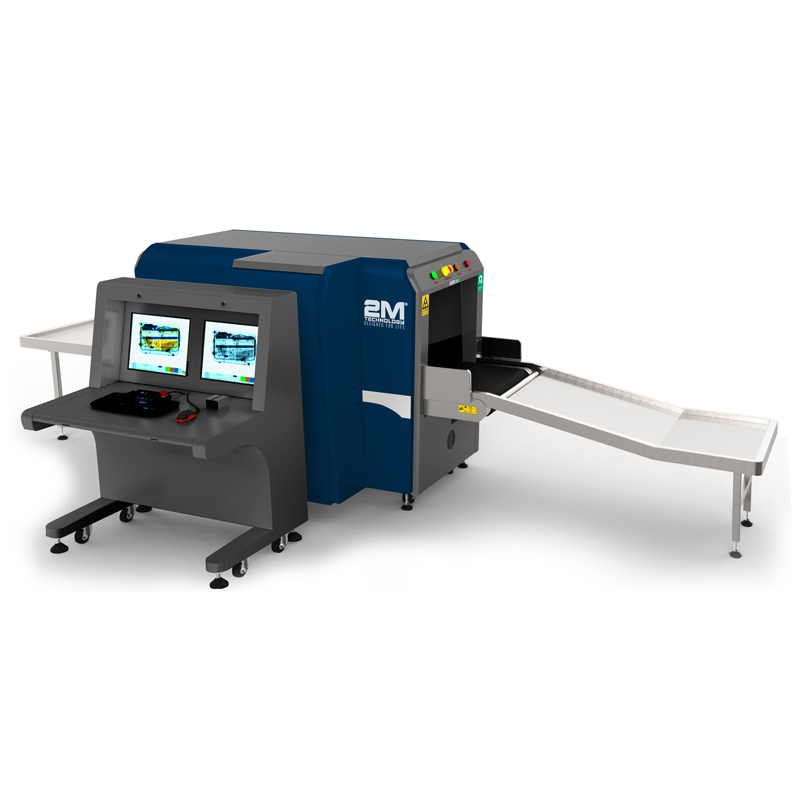

The 2MX-6550DH X-Ray Baggage Scanner with dual monitors.
Features:
• Multilingual operation
• Automatic built in test and self diagnosis
• Secure access key
• Threat alert and material classification
• Auto archiving
• Energy saving design
• One key turn off
• Drugs and explosives inspection
• Indication of the date and time
• Baggage counter
**This machine is not a medical device. It is intended for industrial or security purposes only.**
Note: This is a special order item. Allow 4-6 weeks for delivery.
| Country of Origin | China |
|---|
| GENERAL SPECIFICATIONS | |
|---|---|
| Tunnel size (W x H) | 25.98″ x 19.72″ (in) / 660 x 501 mm |
| Unit weight | 1631.42 lbs / 740 kg |
| Unit size (L x W x H) | 100.24″ x 53.07″ x 54.4″ (in) / 2456 x 1348 x 1331 mm |
| Palletized Gross Weight | 1895.98 lbs / 860 kg |
| Packing Size | #1: 105.5″ x 59.84″ x 64.57″ (in) / 268 x 152 x 164 cm #2: 44.49″ x 36.61″ x 55.91″ (in) / 113 x 93 x 142 cm #3: 61.81″ x 32.28″ x 17.32″ (in) / 157 x 82 x 44 cm |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 26.34″ (in) / 669 mm |
| Conveyor Max Load | 363.76 lbs / 165 kgs |
| X-ray dose per each inspection | ≤4.8μSv |
| X-Ray Leakage | <0.1 mR/hr at any point 5 cm outside the external surface. (Leakage less than 0.5 mR/hr permitted by the Federal Standard) |
| Steel penetration | 34 mm guaranteed |
| Wire Resolution | Horizontal AWG38 / Vertical AWG36 guaranteed |
| Penetration Resolution | AWG32 guaranteed |
| Spatial Resolution | Horizontal view: 1.3mm Horizontal / Vertical Upward view: 1.0mm Horizontal / Vertical |
| Power Consumption | Max. 1KW |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-RAY GENERATOR (DUAL) | |
| Anode Voltage | 160 KV |
| Ray Direction | Vertical and Horizontal |
| Cooling / Duty Cycle | Sealed oil cooling / 100% |
| IMAGE SYSTEM | |
| Detector | 2560 channels in two L-Shaped Arrays |
| Images Processing | Color / black and white imaging, local enhancement, high penetration, low penetration, super enhancement, organic stripping, inorganic stripping, reverse color, brightening, darkening, gray level change/variable contrast, continuously zoom maximum 64x, pseudo color imaging, organics enhancement, suspicious item alarm and notation, edge enhancement imaging, etc. |
| Explosives & Narcotics Detection | Suspicious organics highlight (atomic number Zeff=7,8,9) |
| Suspicious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection (TIP) | Inserting fictional, but realistic images of threat items into bag- gage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image pullback | 30 images |
| Image Archive | Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/x- ray-on timers, power on self test, built-in diagnostic facilities, bidirectional scanning, forced scanning, image search and export, system setting, system log, system standby and stimulant training, etc. |
| Options | Intelligent roller, remote work station, network integration, video monitoring, face recognition and baggage integration, recheck station, additional roller table, etc. |
| SYSTEM | |
| Monitor | Dual 24” LCD Color Monitors, 1280 x 1024; 24 Bit/Pixel Color |
| Console | A console which can lock the display and keyboard |
| CPU | Intel (R) i3 (R) 3.3 GHz |
| RAM | 4 GB |
| Hard Disk | 500 GB HDD, 120 GB SSD • 1 GB Video Card |
| Keyboard | Special designed |
| Platform | Windows 10 |
| Backup | Uninterrupted Power Supply (Computer Operation – 20 Minute) |
| Roller | 1.0 m Entry Roller Table |
| OPERATING ENVIRONMENT | |
| Operating Temperature | 5 °C to 40 °C |
| Operating Humidity | 0%-90% (non-condensing) |
| Storage Temperature | -20 °C to 60 °C |
| Storage Humidity | 10%-90% (non-condensing) |
| Power | 110VAC±10%, 50/60Hz, 20 Amp Max, 220VAC ±10%, 50/60Hz, 15 Amp Max |
