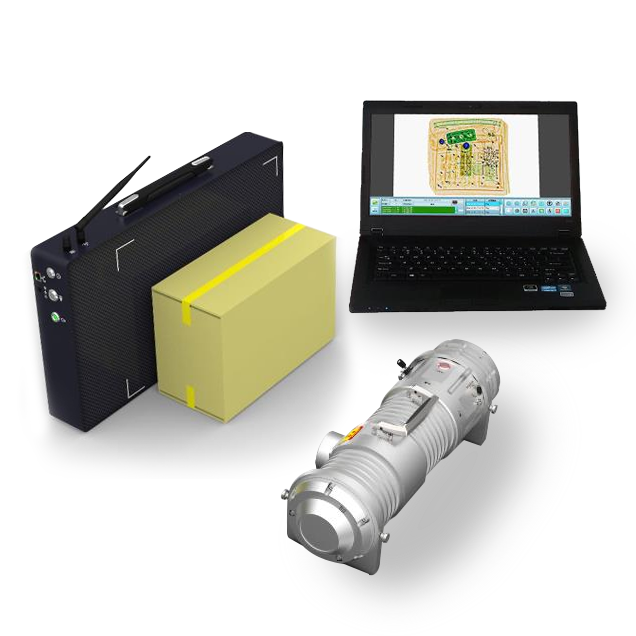

2MXP-2300 Portable Inspection X-ray Scanner

REQUEST QUOTE (for best price)
  • Light weight, easy to carry, dismantle, assemble, operate and maintain
  • Work in harsh environments such as strong light
  • Wireless connection with remote control up to 30m for operator safety
  • Powerful imaging software with low x-ray dose for radiation safe
  • Friendly multilingual interface

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

Downloads

Product Highlights

  • Light weight, easy to carry, dismantle, assemble, operate and maintain
  • Work in harsh environments such as strong light
  • Wireless connection with remote control up to 30m for operator safety
  • Powerful imaging software with low x-ray dose for radiation safe
  • Friendly multilingual interface

**Important Notes**
– Special order item. Please allow 4-6 weeks for delivery.
– This is not a medical device. It is intended for industrial or security purposes only.

Interested in This Product?

Let us know by completing the form, and we’ll contact you with the details you need to make the right choice.

SKU: 2MXP-2300 Categories: , , Tags: , , , , ,
Country of Origin

China
GENERAL SPECIFICATIONS
Image Area 30 x 42 cm / 11.8" x 16.5" (in)
Image Size 1024 x 768 pixels
Image Contrast 16bit 65536 Color Gray Level
Wire Resolution 40AWG
Penetration Aluminum 60 mm copper; Steel 6 mm copper
X-Ray Dose 52 mSv/s
X-Ray Leakage 15 uSv/h at 1 m from the X-ray exit
DETECTION BOX
Imaging Mechanism Linear array scanning
Detection Speed 8s
Imaging Area 30 x 42 cm / 11.8" x 16.5" (in)
Detector Size 0.78 mm / 0.03" (in)
Detection Points 384 x 2
Battery Capacity 10.4AH
Maximum Power Consumption 30W
Thickness 8.5 cm / 3.3" (in)
Weight 8 kg / 17.6 lbs
X-RAY GENERATOR
Anode Voltage 120KV, adjustable
Beam Direction Horizontal
Cooling / Duty Cycle Sealed oil cooling / 100%
Output Power 120W (120KV 1.0mA)
Light Source Viewing Angle 46° (degrees)
Tube Voltage Adjustable Range 30-120KV
Tube Voltage Adjustable Step 10KV
Adjustable Accuracy ±2.0%
Voltage Ripple <+0.5%
Voltage Rise Time < 400 ms
Voltage Overshoot < 5%
Tube Current Adjustable Range 0.4 - 1.0mA
Tube Current Adjustable Step < 10uA
Weight 14 kg / 30.9 lbs
SYSTEM
Operating System Windows10 32bit
Processor Intel Core i3-6006U Series
Core Number / Thread Dual core / Four threads
Memory Capacity 4 GB
Hard Disk Capacity 500 GB
MONITOR
Screen Size 14" (in)
Screen Resolution 1366 x 768
Graphics Card Discrete Graphics
Wireless Network Card 1000 Mbps Ethernet Card
Battery Life 2-5 hours
Weight 2.75 kg / 6.1 lbs
Optional Dosimeter
GENERAL
Operating Temperature 5 °C to 40 °C / 41 °F to 104 °F
Storage Temperature -20 °C to 60 °C / -4 °F to 140 °F
Power 220V(+10% ~ -15%) 50±3Hz; Options: 100-130V, 200-250V, 60Hz
Weight (After Packed on Wood Pallets) 51 kg / 112.4 lbs #1: 22.4 kg / 49.3 lbs #2: 28.6 kg / 63.1 lbs
Packaged Size (LxWxH) #1: 690 x 520 x 370 mm / 27.2" x 20.5" x 14.6" (in) #2: 690 x 520 x 370 mm / 27.2" x 20.5" x 14.6" (in)
